Ingersoll Cutting Tools

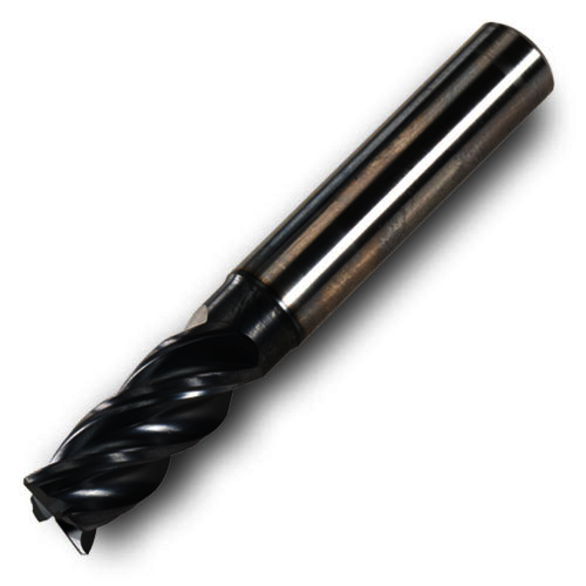

INGCUT 5623217 IN2005 Solid Carbide 0.75 Dia End Mill

INGCUT 5623217
$369.00 / EA
Out of Stock
INGCUT 5623217 IN2005 Solid Carbide 0.75 Dia End Mill
  • Material: Solid Carbide
  • Shank Diameter - Decimal: Cylindrical .750"
  • Shank Diameter - Fractional: 3/4 in
  • Shank Diameter - Metric: 19.05 mm
  • Overall Length: 5 in
  • Helix Angle: 38 Degree
  • Cutter Pitch: Unequal
  • Diameter - Fractional: 3/4 in
  • End Type: Corner Radius
  • Grade: IN2005
  • Pitch: Variable
  • Series: 47J_RQ
  • Shank Type: Cylindrical
  • Diameter - Decimal: 0.75 in
  • Diameter - Metric: 19.05 mm
  • Ø.375-.750" (Cylindrical)
  • 4 or 5 Flute for Roughing & Finishing Variable pitch with corner radius and sharp corners
  • High metal removal rates, chatter-free
  • For alloyed and stainless steel, titanium, and exotic materials
  • Full slot milling up to 2xD
  • Grade: IN2005

Standard/Approvals:IN2005

Applications:

  • Shoulder
  • Slabbing
  • Channeling
  • Ramping
  • Helical/Corkscrew

    • Ingersoll Cutting Tools 5623217 | Number of Flutes 5 | Solid Carbide | Square End Mill
