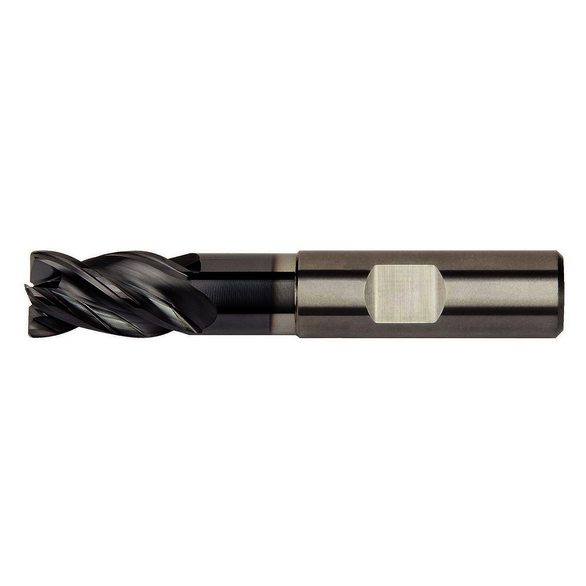

Kennametal 6769585 0.1378 in Milling Dia, 0.3937 in LOC, 2.2441 in OAL, 4 Flutes, Carbide, AlTiN, Square End Mills
KENNAM 6769585
$53.95
/ EA
Out of Stock
- Centercutting: Center Cutting
- Number of Flutes: 4
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- Overall Length: 2.2440 in
- Helix Angle: 36 deg
- Flute Type: Spiral
- Hand of Tool: R - Right
- Overall Length - Decimal: 2.2441 in
- Taxonomy Level 1: Milling
- Coated carbide grade with thick PVD coating and optimized chemistry and process for increased wear resistance. Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.Corner Style: Square End
Standard/Approvals: KCPM15, KCPM15, H1TE4SE0350N010HBM
Application: Side Milling/Shoulder Milling: Eased Chamfer, Pocketing, Helical Milling, Slotting: Square End, Trochoidal Milling, Shank - Cylindrical Plain, Ramping: Blank, Plunge Milling, Side Milling/Shoulder Milling: Roughing
Kennametal 6769585 Mill Diameter 0.1378 in | Number of Flutes 4 | Length of Cut 0.3937 in | Solid Carbide | AlTiN | Square End Mill
