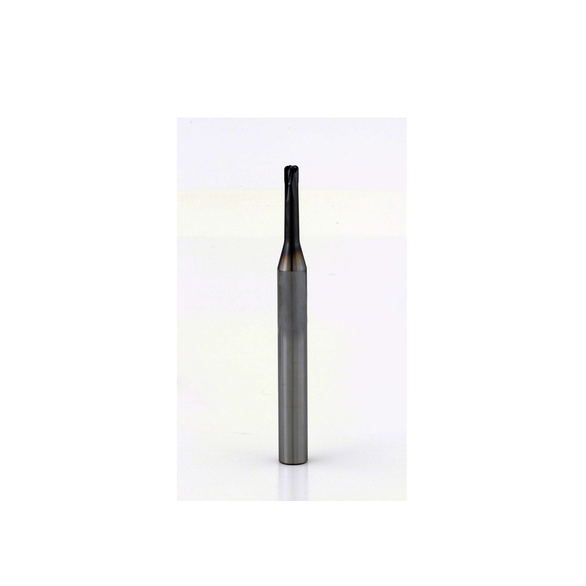

Niagara Cutter 02942316 MZN410R Center Cutting High Feed Short Length Single End End Mill, 3/16 in Dia Cutter, 0.05 in Corner Radius, 0.05 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN Coated
- Centercutting: No Center Cutting
- Mill Diameter: 3/16 in
- Mill Diameter - Decimal: 0.1875 in
- Mill Diameter - Fractional: 3/16 in
- Mill Diameter - Metric: 4.7625 mm
- Number of Flutes: 4
- Length of Cut: 0.05 in
- Material: Carbide
- Finish/Coating: AlTiN
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Single or Double End: Single End
- Overall Length: 2-1/2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 10 deg
- Capacity: 3 mm
- Chipbreaker: No
- Corner Radius: 0.05 in
- Cutter Diameter: 3/16 in
- End Type: Corner Radius
- Finish: AlTiN
- Length of Cut - Decimal: 0.05 in
- Length Type: Short Length
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Overall Length - Metric: 63.5 mm
- Series: MZN410R
- Shank Type: Cylindrical
- Type: Center Cutting;High Feed
- Variable Helix: No
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/16 in
- Variable Index: No
The MZN410R are designed to maximize productivity in hardened steels and super alloys. These end mills feature optimized substrate, geometry and coating to offer superior performance and process reliability. These high feed end mills are available in 1/8 to 5/8 in diameters, in four or five flute options, depending on the diameter. This range also features a short and long reach option to fit various work piece requirements. The MZN410R and MZN510R are effective in hardened steels, cast irons and nickel based super alloys. A typical application for this end mill is when machining hardened tool steels used in mold and die components. High feed milling (HFM) can reduce machining times and cut costs allowing one tool to be used in a wide range of operations and strategies. Reduce component costs by maximizing material removal rates and reduce processing time by allowing close to profile pocketing of 90 deg walls. HFM can also minimize semi-finishing operations, thus further increasing efficiency. The open end tooth design provides superior chip evacuation. This provides process reliability because chips are effectively removed from the cutting zone and not being re-cut which leads to edge chipping.
- Strong end tooth design
- Hardened steels and nickel based super alloys such as inconel
- Edge preparation for increased cutting edge strength
- 2 deg back taper with reduced neck diameter for workpiece clearance
Niagara Cutter End Mill | Center Cutting High Feed Short Length Single End | Series: MZN410R | 3/16 in Cutter Dia | 0.05 in Corner Radius | 2-1/2 in Overall Length | 0.05 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 10 deg Helix Angle | Cylindrical Shank | ANSI Code: MZN410R-0.188-J2-R050.0-Z4 | ISO Code: MZN410R.188J2R050.0Z4 Z4 | Solid Carbide | AlTiN Coated
