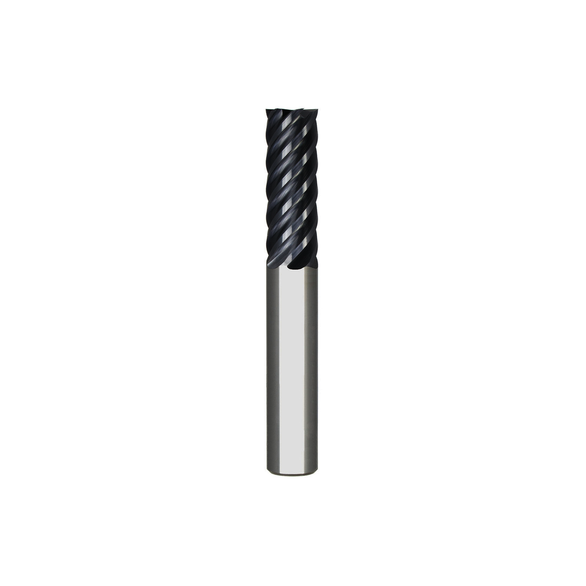

Niagara Cutter 17000944 Elite S645M Center Cutting High Performance Medium Length Single End Square End End Mill, 12 mm Dia Cutter, 32 mm Length of Cut, 6 Flutes, 12 mm Dia Shank, 84 mm OAL, AlTiN Coated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
• 90 deg cutting edge
• 1.771 in L minimum clamping
• 45 deg axial rake
• 10 deg radial rake
• Eccentric primary relief
• Ideal for peripheral finish milling in steel, stainless steel, titanium and high temperature alloys
• D - Cylindrical tool shape
• Square nose end mills (also called square end) create sharp, unrounded cuts

Peripheral Finish Milling

Niagara Cutter End Mill | Center Cutting High Performance Medium Length Single End Square End | Series: Elite S645M | 12 mm Cutter Dia | 84 mm Overall Length | 12 mm | 32 mm Maximum Depth of Cut | 6 Flutes | Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: S645M-120-D3-S.0-Z6 | ISO Code: S645M120D3S.0Z6 | Solid Carbide | AlTiN Coated
