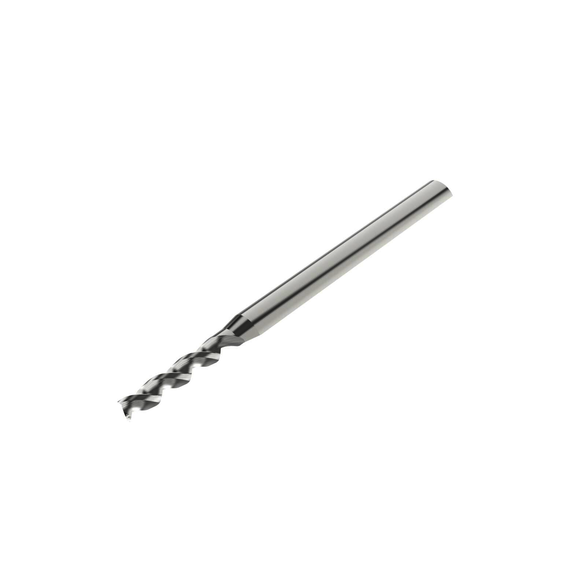

Niagara Cutter 17003135 Elite A345 Center Cutting High Performance Medium Length Single End Square End End Mill, 5/32 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 2 in OAL, Uncoated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 1.102 in L minimum clamping
• 45 deg axial rake
• 13 deg side rake
• 10 deg neck
• Ideal for aluminum and non-ferrous materials
• Cylindrical land to eliminate chatter
• F - Step tool shape
• Form ground flute shape
• Square nose end mills (also called square end) create sharp, unrounded cuts

Peripheral Milling

Niagara Cutter End Mill | Center Cutting High Performance Medium Length Single End Square End | Series: Elite A345 | 5/32 in Cutter Dia | 2 in Overall Length | 3/16 in | 1/2 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: A345-0.156-F3-S.0-Z3 | ISO Code: A345.156F3S.0Z3 | Solid Carbide | Uncoated
