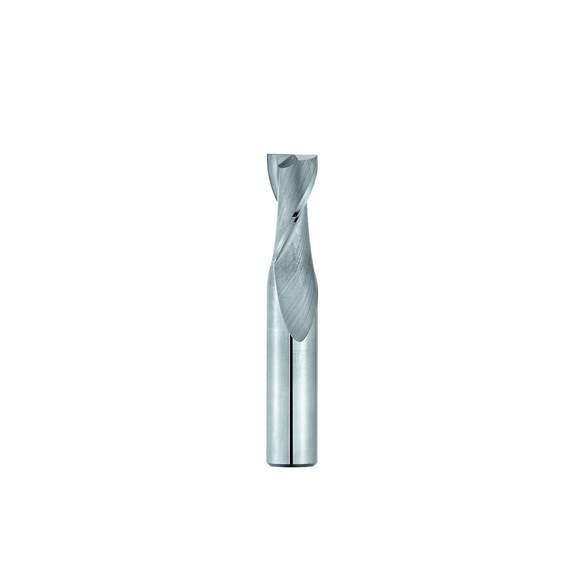

Niagara Cutter 17005135 C230 Center Cutting Medium Length Single End Square End End Mill, 1/16 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated
NIACUT 17005135
$13.04
/ EA
Out of Stock
- Mill Diameter: 1/16 in
- Number of Flutes: 2
- Length of Cut: 3/16 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 1/8 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Overall Length: 1-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 1/16 in
- Cutter Diameter - Fractional: 1/16 in
- Diameter: 1/16 in
- Diameter - Fractional: 1/16 in
- Finish: TiAlN Coated
- Length of Cut - Fractional: 3/16 in
- Overall Length - Fractional: 1-1/2 in
- Series: C230
- Shank Type: Cylindrical
- Type: Center Cutting;General Purpose
- Flute Type: Spiral
- Diameter - Metric: 1.587 mm
- Diameter - Decimal: 0.0625 in
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 7 deg radial rake
- 16 deg neck
- F - Step tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Medium Length Single End Square End | Series: C230 | 1/16 in Cutter Dia | 1-1/2 in Overall Length | 1/8 in | 3/16 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 1/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C230-0.063-F3-S.0-Z2 | ISO Code: C230.063F3S.0Z2 | Solid Carbide | TiAlN Coated
