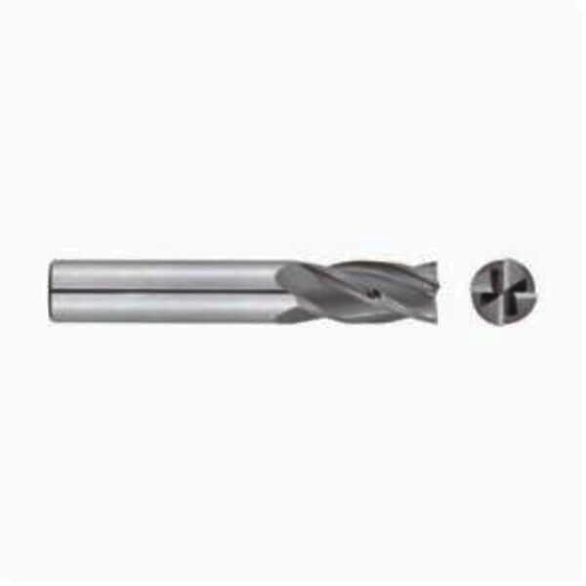

Niagara Cutter 17005299 C430 Center Cutting Single End Medium Length Square End End Mill, 1/16 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated
NIACUT 17005299
$11.62
/ EA
Out of Stock
- Mill Diameter: 1/16 in
- Mill Diameter - Fractional: 1/16 in
- Number of Flutes: 4
- Length of Cut: 3/16 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 1/8 in
- Shank Diameter - Fractional: 1/8 in
- Single or Double End: Single End
- Overall Length: 1-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 1/16 in
- Cutter Diameter - Fractional: 1/16 in
- Length of Cut - Fractional: 3/16 in
- Overall Length - Fractional: 1-1/2 in
- Part Number: N85506
- Series/List: C430
- Flute Type: Spiral
- Shank Type: Cylindrical
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 7 deg radial rake
- 10 deg neck
- F - Step tool shape
General Purpose Applications
Niagara Cutter End Mill | Center Cutting Single End Medium Length Square End | Series: C430 | 1/16 in Cutter Dia | 1-1/2 in Overall Length | 1/8 in | 3/16 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430-0.063-F3-S.0-Z4 | ISO Code: C430.063F3S.0Z4 | Solid Carbide | Uncoated
