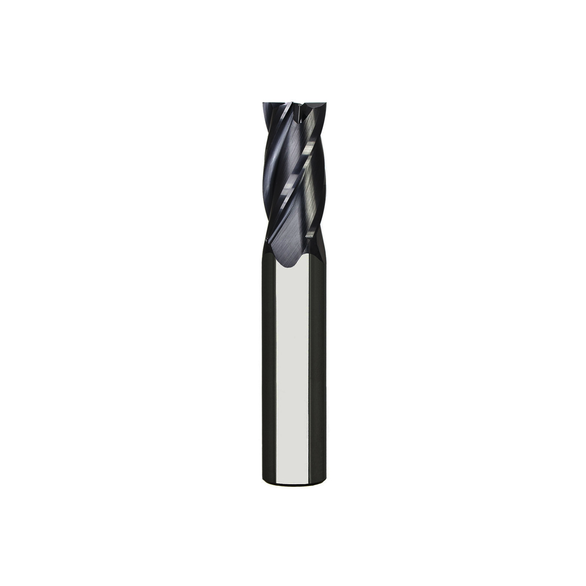

Niagara Cutter 17005304 C430 Center Cutting Long Length Single End Square End End Mill, 9/64 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, Uncoated
NIACUT 17005304
$15.73
/ EA
Out of Stock
- Mill Diameter: 9/64 in
- Number of Flutes: 4
- Length of Cut: 1/2 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Overall Length: 2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/16 in
- Cutter Diameter: 9/64 in
- Cutter Diameter - Decimal: 0.14062 in
- Flute Type: Spiral
- Length of Cut - Fractional: 1/2 in
- Overall Length - Decimal: 2 in
- Series: C430
- Shank Type: Cylindrical
- Length Type: Long Length
- Cutter Diameter - Metric: 3.571 mm
- Cutter Diameter - Fractional: 9/64 in
- Type: Center Cutting
- Finish: Uncoated
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- F - Step tool shape
General Purpose Applications
Niagara Cutter End Mill | Center Cutting Long Length Single End Square End | Series: C430 | 9/64 in Cutter Dia | 2 in Overall Length | 3/16 in | 1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430-0.141-F4-S.0-Z4 | ISO Code: C430.141F4S.0Z4 | Solid Carbide | Uncoated
