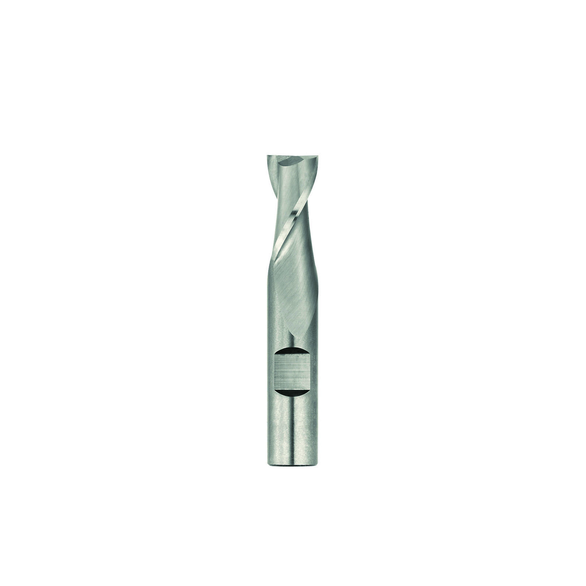

Niagara Cutter 17005575 CNC230 Center Cutting Short Length Single End Square End End Mill, 5/8 in Dia Cutter, 1-1/4 in Length of Cut, 2 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, TiAlN Coated
NIACUT 17005575
$155.78
/ EA
Out of Stock
- Mill Diameter: 5/8 in
- Number of Flutes: 2
- Length of Cut: 1-1/4 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 5/8 in
- Shank Diameter - Decimal: 0.625 in
- Shank Diameter - Fractional: 5/8 in
- Shank Diameter - Metric: 15.87 mm
- Overall Length: 3-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 5/8 in
- Cutter Diameter: 5/8 in
- Cutter Diameter - Fractional: 5/8 in
- Cutter Diameter - Metric: 15.87 mm
- Finish: TiAlN Coated
- Length of Cut - Fractional: 1-1/4 in
- Overall Length - Fractional: 3-1/2 in
- Series: CNC230
- Type: Center Cutting;General Purpose
- Length Type: Short Length
- Flute Type: Spiral
- Cutter Diameter - Decimal: 0.625 in
- Shank Type: Weldon Flat
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: CNC230 | 5/8 in Cutter Dia | 3-1/2 in Overall Length | 5/8 in | 1-1/4 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 5/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: CNC230-0.625-D2-S.3-Z2 | ISO Code: CNC230.625D2S.3Z2 | Solid Carbide | TiAlN Coated
