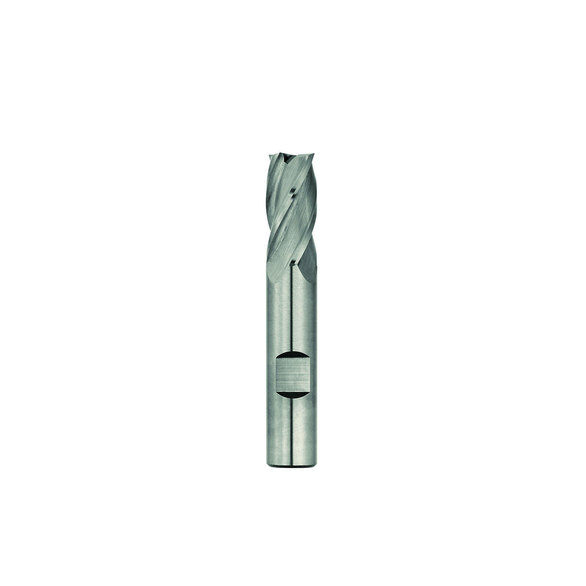

Niagara Cutter 17005660 CNC430 Center Cutting Short Length Single End Square End End Mill, 3/4 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, TiAlN Coated
NIACUT 17005660
$227.08
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Number of Flutes: 4
- Length of Cut: 1-1/2 in
- Material: Solid Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 3/4 in
- Shank Diameter - Fractional: 3/4 in
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 3/4 in
- Length of Cut - Fractional: 1-1/2 in
- Overall Length - Decimal: 4 in
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/4 in
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: CNC430 | 3/4 in Cutter Dia | 4 in Overall Length | 3/4 in | 1-1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: CNC430-0.750-D2-S.3-Z4 | ISO Code: CNC430.750D2S.3Z4 | Solid Carbide | TiAlN Coated
