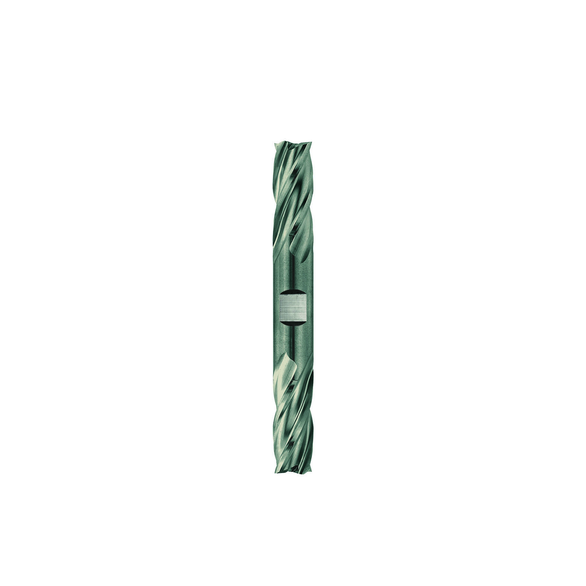

Niagara Cutter 17006418 CSD430 Center Cutting Double End Short Length Square End End Mill, 11/32 in Dia Cutter, 9/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
NIACUT 17006418
$41.31
/ EA
Out of Stock
- Mill Diameter: 11/32 in
- Number of Flutes: 4
- Length of Cut: 9/16 in
- Material: Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 11/32 in
- Cutter Diameter - Decimal: 0.34375 in
- Cutter Diameter - Fractional: 11/32 in
- Cutter Diameter - Metric: 8.731 mm
- Finish: Uncoated
- Length of Cut - Fractional: 9/16 in
- Overall Length - Fractional: 2-1/2 in
- Series: CSD430
- Type: Center Cutting;General Purpose
- Length Type: Short Length
- Flute Type: Spiral
- Shank Type: Cylindrical
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- 35 deg helix angle provides increased cutting action and chip evacuation compared to the standard 30 deg helix
- F - Step tool shape
For general machining of most materials
Niagara Cutter End Mill | Center Cutting Double End Short Length Square End | Series: CSD430 | 11/32 in Cutter Dia | 2-1/2 in Overall Length | 3/8 in | 9/16 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CSD430-0.344-XF2-S.0-Z4 | ISO Code: CSD430.344XF2S.0Z4 | Solid Carbide | Uncoated
