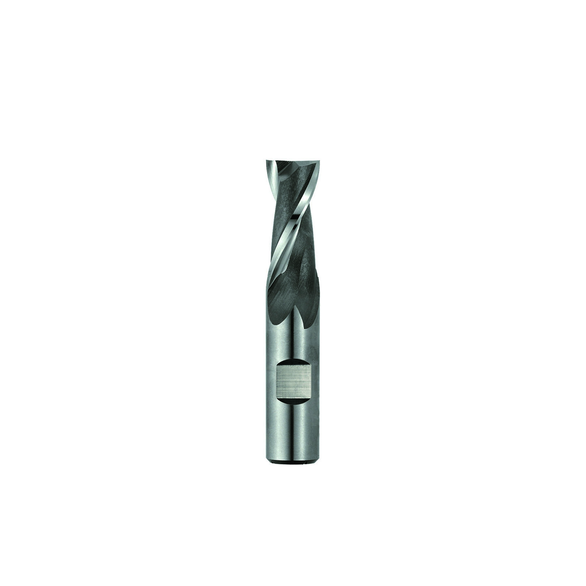

Niagara Cutter 17011634 SP205 Center Cutting Short Length Single End Square End End Mill, 9/32 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-5/16 in OAL, Uncoated
NIACUT 17011634
$30.50
/ EA
Out of Stock
- Mill Diameter: 9/32 in
- Number of Flutes: 2
- Length of Cut: 9/16 in
- Material: M42 8% Cobalt
- Finish/Coating: Uncoated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 2-5/16 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/8 in
- Capacity: 19 mm
- Cutter Diameter: 9/32 in
- Cutter Diameter - Decimal: 0.28125 in
- Cutter Diameter - Fractional: 9/32 in
- Cutter Diameter - Metric: 7.143 mm
- Length of Cut - Fractional: 9/16 in
- Overall Length - Fractional: 2-5/16 in
- Series: SP205
- Type: Center Cutting
- Length Type: Short Length
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Finish: Uncoated
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- F - Step tool shape
For pocketing and slotting in all materials including high temperature alloys
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: SP205 | 9/32 in Cutter Dia | 2-5/16 in Overall Length | 3/8 in | 9/16 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SP205-0.281-F2-S.3-Z2 | ISO Code: SP205.281F2S.3Z2 | M42 8% Cobalt | Uncoated
