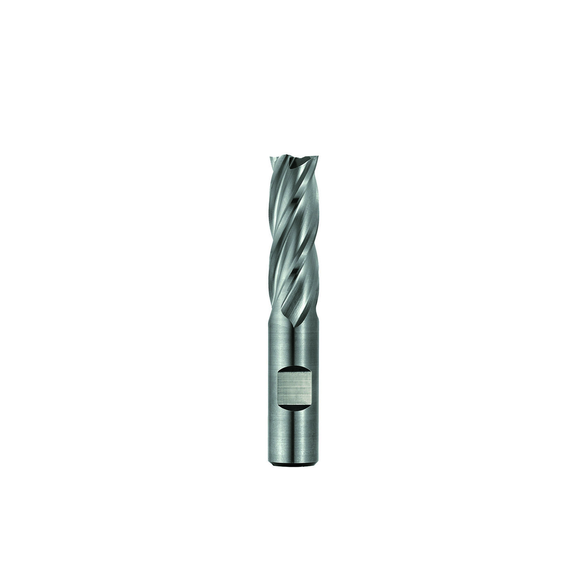

Niagara Cutter 17016403 SPC408 Center Cutting Medium Length Single End Square End End Mill, 3/16 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-3/8 in OAL, TiCN Coated
NIACUT 17016403
$33.67
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Number of Flutes: 4
- Length of Cut: 1/2 in
- Material: M42 8% Cobalt
- Finish/Coating: TiCN Coated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 2-3/8 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/8 in
- Cutter Diameter: 3/16 in
- Cutter Diameter - Metric: 4.762 mm
- Finish: TiCN Coated
- Length of Cut - Fractional: 1/2 in
- Overall Length - Fractional: 2-3/8 in
- Series: SPC408
- Shank Type: Weldon Flat
- Type: Center Cutting
- Length Type: Medium Length
- Flute Type: Spiral
- Cutter Diameter - Decimal: 0.1875 in
- Cutter Diameter - Fractional: 3/16 in
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN and is commonly used on stainless steels, cast iron and aluminum alloys
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- F - Step tool shape
For profiling and slotting in all materials
Niagara Cutter End Mill | Center Cutting Medium Length Single End Square End | Series: SPC408 | 3/16 in Cutter Dia | 2-3/8 in Overall Length | 3/8 in | 1/2 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SPC408-0.188-F3-S.3-Z4 | ISO Code: SPC408.188F3S.3Z4 | M42 8% Cobalt | TiCN Coated
