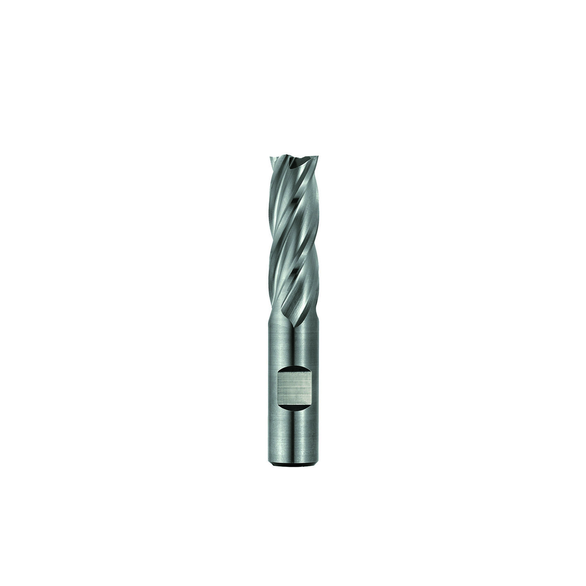

Niagara Cutter 17016410 SPC408 Center Cutting Long Length Single End Square End End Mill, 5/16 in Dia Cutter, 1-3/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/8 in OAL, TiCN Coated
NIACUT 17016410
$41.26
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Number of Flutes: 4
- Length of Cut: 1-3/8 in
- Material: M42 8% Cobalt
- Finish/Coating: TiCN Coated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3-1/8 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/8 in
- Cutter Diameter: 5/16 in
- Cutter Diameter - Decimal: 0.3125 in
- Cutter Diameter - Fractional: 5/16 in
- Cutter Diameter - Metric: 7.937 mm
- Finish: TiCN Coated
- Grade: M42
- Length of Cut - Fractional: 1-3/8 in
- Length Type: Long Length
- Overall Length - Fractional: 3-1/8 in
- Series: SPC408
- Type: Center Cutting
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN and is commonly used on stainless steels, cast iron and aluminum alloys
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- F - Step tool shape
For profiling and slotting in all materials
Niagara Cutter End Mill | Center Cutting Long Length Single End Square End | Series: SPC408 | 5/16 in Cutter Dia | 3-1/8 in Overall Length | 3/8 in | 1-3/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SPC408-0.313-F4-S.3-Z4 | ISO Code: SPC408.313F4S.3Z4 | M42 8% Cobalt | TiCN Coated
