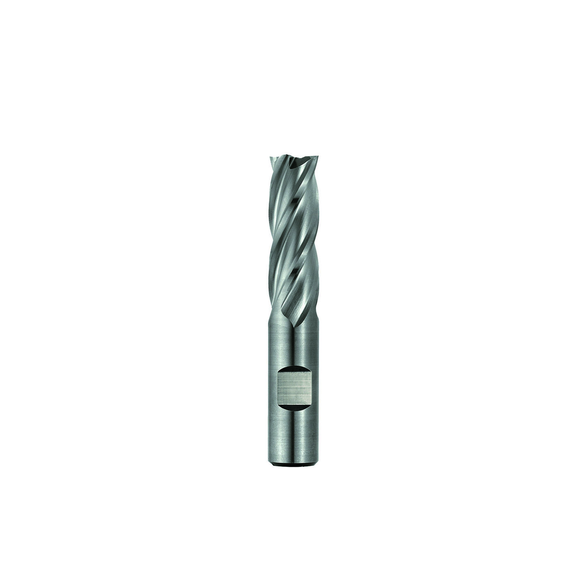

Niagara Cutter 17016468 SPC408 Center Cutting Short Length Single End Square End End Mill, 2 in Dia Cutter, 4 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 6-1/2 in OAL, TiCN Coated
NIACUT 17016468
$474.30
/ EA
Out of Stock
- Mill Diameter: 2 in
- Number of Flutes: 6
- Length of Cut: 4 in
- Material: M42 8% Cobalt
- Finish/Coating: TiCN Coated
- Shank Diameter: 1 1/4 in
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Fractional: 1 1/4 in
- Shank Diameter - Metric: 31.75 mm
- Overall Length: 6-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 1-1/4 in
- Cutter Diameter: 2 in
- Cutter Diameter - Decimal: 2 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Length of Cut - Decimal: 4 in
- Overall Length - Fractional: 6-1/2 in
- Series: SPC408
- Shank Type: Weldon Flat
- Type: Center Cutting
- Length Type: Short Length
- Flute Type: Spiral
- Cutter Diameter - Metric: 50.8 mm
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN and is commonly used on stainless steels, cast iron and aluminum alloys
- 90 deg cutting edge
- 2.281 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- P - Tool shape
For profiling and slotting in all materials
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: SPC408 | 2 in Cutter Dia | 6-1/2 in Overall Length | 1-1/4 in | 4 in Maximum Depth of Cut | 6 Flutes | Spiral Flute | 1-1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SPC408-2.000-P2-S.3-Z6 | ISO Code: SPC4082.000P2S.3Z6 | M42 8% Cobalt | TiCN Coated
