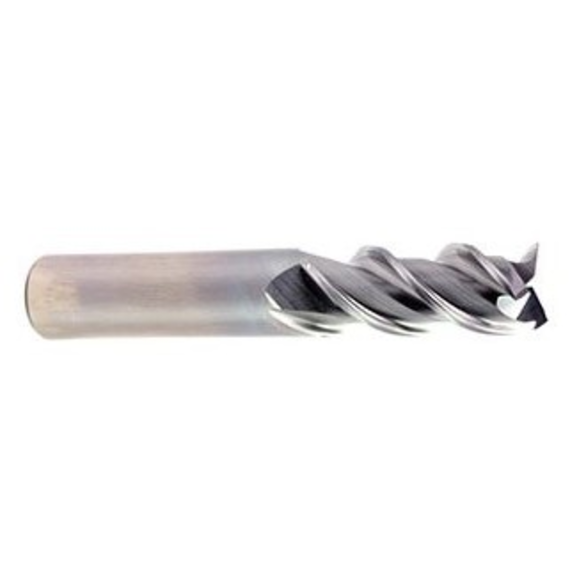

OSG 20480500 1/2 in Milling Dia, 1/2 in LOC, 4 in OAL, 3 Flutes, Solid Carbide, Bright, Square End Mills
- Centercutting: No Center Cutting
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Number of Flutes: 3
- Length of Cut: 1/2 in
- Material: Solid Carbide
- Finish/Coating: Bright
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Single or Double End: Single End
- Overall Length: 4 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Center Cutting: No
- Chipbreaker: No
- Cutter Diameter: 1/2 in
- Cutter Diameter - Fractional: 1/2 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Extended Reach: Yes
- Finish: Bright
- Length of Cut - Fractional: 1/2 in
- Length Type: Long Length
- Mill Diameter Tolerance: +0 / -0.002 in
- Neck Diameter: 2-1/8 in
- Neck Diameter - Decimal: 2.125 in
- Neck Diameter - Fractional: 2-1/8 in
- Neck Diameter - Metric: 53.97 mm
- Neck Length: 0.496 in
- Overall Length - Decimal: 4 in
- Series: 2048
- Series/List: 2048
- Shank Type: Shrink Fit
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Fractional: 1/2 in
- Diameter - Metric: 12.7 mm
- Variable Index: No
The EXOCARB® Aero Blizzard® series is part of the OSG premium line of carbide high performance end mills specifically designed for either Aluminum or Copper alloys. Special end cut gashing and offset teeth permit large depths of cut and maximum feed per tooth. Made with polished flutes to enhance tool life and reduce BUE, this end mill yields 45-50% higher metal removal rates in roughing applications, and superior finishing capability.
- Refined geometry
- Larger depth of cut and maximum feed per tooth
- Ultra smooth Flutes
- Enhances tool life by reducing BUE
- DLC available on request
- Ideal for rough and finish contouring
Application:Aluminum and Copper alloysAny application where productivity and the lowest cost-per-unit is the goalWhen spindle speed is limited (< 10,000 rpm)Aerospace, Job ShopsRoughing, Finishing and Contouring
OSG 20480500 Mill Diameter 0.5000 in | Number of Flutes 3 | Length of Cut 1/2 in | Carbide | Bright | Square End Mill
