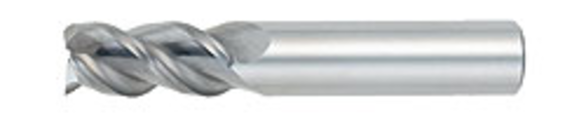

OSG 445-1562 5/32 in Milling Dia, 9/16 in LOC, 2 in OAL, 3 Flutes, Micrograin Carbide, Bright, Square End Mills
OSG 445-1562
$19.07
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 5/32 in
- Mill Diameter - Decimal: 0.156 in
- Mill Diameter - Fractional: 5/32 in
- Number of Flutes: 3
- Length of Cut: 9/16 in
- Material: Micrograin Carbide
- Finish/Coating: Bright
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Single or Double End: Single End
- Overall Length: 2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 5/32 in
- Cutter Diameter - Fractional: 5/32 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Flute Type: Right Spiral
- Length of Cut - Fractional: 9/16 in
- Overall Length - Decimal: 2 in
- Series: 445
- Series/List: 445
- Shank Type: Straight
- Type: Center Cutting
- Variable Helix: No
- Length Type: Regular Length
- Diameter - Fractional: 5/32 in
- Diameter - Metric: 3.968 mm
- Finish: Bright
- Variable Index: No
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Application:Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG 445-1562 Mill Diameter 0.1563 in | Number of Flutes 3 | Length of Cut 9/16 in | Carbide | Bright | Square End Mill
