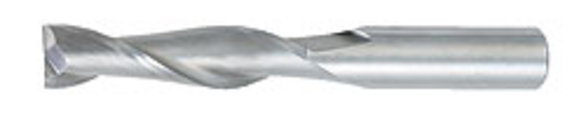

OSG 462-1575 4 mm Milling Dia, 19 mm LOC, 57 mm OAL, 2 Flutes, Micrograin Carbide, Bright, Square End Mills
OSG 462-1575
$23.79
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 4 mm
- Mill Diameter - Decimal: 0.158 in
- Number of Flutes: 2
- Length of Cut: 19 mm
- Material: Micrograin Carbide
- Finish/Coating: Bright
- Shank Diameter: 4 mm
- Shank Diameter - Decimal: 0.1575 in
- Shank Diameter - Metric: 4 mm
- Single or Double End: Single End
- Overall Length: 57 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 4 mm
- Cutter Diameter - Metric: 4 mm
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 4 mm
- Flute Type: Spiral
- Length of Cut - Decimal: 0.748 in
- Length of Cut - Metric: 19 mm
- Mill Diameter Tolerance: +0 / -0.05 mm
- Overall Length - Metric: 57 mm
- Series: 462
- Series/List: 462
- Shank Type: Straight
- Variable Index: No
- Length Type: Long Length
- Finish: Bright
- Variable Helix: No
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Application:Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG 462-1575 Mill Diameter 0.1575 in | Number of Flutes 2 | Length of Cut 0.7480 in | Carbide | Bright | Square End Mill
