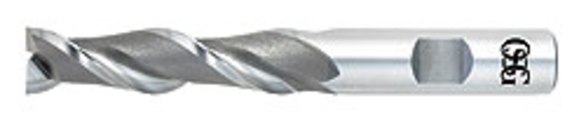

OSG 5355100 1 in Milling Dia, 4 in LOC, 6-1/2 in OAL, 2 Flutes, HSS-CO, Bright, Square End Mills
OSG 5355100
$212.67
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 1 in
- Number of Flutes: 2
- Length of Cut: 4 mm
- Material: HSS-CO
- Finish/Coating: Bright
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Single or Double End: Single End
- Overall Length: 6-1/2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 1 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 25.4 mm
- Extended Reach: No
- Grade: M42
- Helix Style: High
- Length of Cut - Metric: 4 mm
- Length Type: Long Length
- Material Grade: M42
- Mill Diameter Tolerance: +0.0011 / -0 in
- Overall Length - Fractional: 6-1/2 in
- Series: 535
- Series/List: 535
- Type: Center Cutting
- Variable Helix: No
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Finish: Bright
- Variable Index: No
Standard/Approvals:M42
Application:For General Milling Applications
OSG 5355100 Mill Diameter 1.0000 in | Number of Flutes 2 | Length of Cut 4.0000 in | HSS-CO | Bright | Square End Mill
