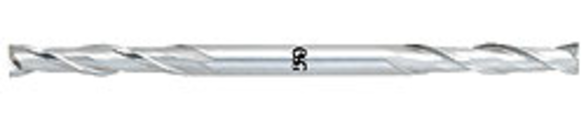

OSG 5648000 3/16 in Milling Dia, 1 in LOC, 3-3/8 in OAL, 2 Flutes, HSS-CO, Bright, Square End Mills
OSG 5648000
$50.46
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 3/16 in
- Number of Flutes: 2
- Length of Cut: 1 in
- Material: HSS-CO
- Finish/Coating: Bright
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Overall Length: 3-3/8 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Yes
- Cutter Diameter: 3/16 in
- Cutter Diameter - Fractional: 3/16 in
- Diameter: 3/16 in
- Diameter - Decimal: 0.188 in
- Length of Cut - Decimal: 1 in
- Length Type: Long Length
- Overall Length - Fractional: 3-3/8 in
- Series: 564
- Series/List: 564
- Flute Type: Spiral
- Diameter - Fractional: 3/16 in
- Shank Type: Weldon Flat
- Diameter - Metric: 4.762 mm
- Finish: Bright
HSS-Co END MILL High Performance Cobalt HSS End Mills for General Milling Applications
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
OSG 5648000 Mill Diameter 3/16 in | Number of Flutes 2 | Length of Cut 1.0000 in | HSS-CO | Bright | Square End Mill
