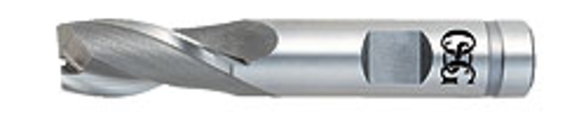

OSG 5730500 1/4 in Milling Dia, 1/2 in LOC, 2-5/16 in OAL, 2 Flutes, HSS-E, Bright, Square End Mills
OSG 5730500
$18.79
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 1/4 in
- Mill Diameter - Fractional: 1/4 in
- Number of Flutes: 2
- Length of Cut: 1/2 in
- Material: HSS-E
- Finish/Coating: Bright
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Single or Double End: Single End
- Overall Length: 2-5/16 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 1/4 in
- Cutter Diameter - Fractional: 1/4 in
- Diameter: 1/4 in
- Diameter - Metric: 6.35 mm
- Extended Reach: No
- Length of Cut - Fractional: 1/2 in
- Material Grade: 3% Vanadium
- Overall Length - Fractional: 2-5/16 in
- Series: 573
- Series/List: 573
- Shank Type: Weldon Flat
- Variable Helix: No
- Length Type: Regular Length
- Flute Type: Spiral
- Diameter - Decimal: 0.25 in
- Diameter - Fractional: 1/4 in
- Finish: Bright
- Variable Index: No
HY-PRO® V Performance HSSE End Mills for Ferrous and Non-Ferrous Materials
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
OSG 5730500 Mill Diameter 1/4 in | Number of Flutes 2 | Length of Cut 1/2 in | HSSE | Bright | Square End Mill
