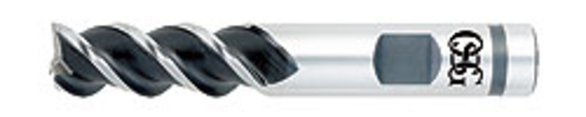

OSG 6600400 5/16 in Milling Dia, 3/4 in LOC, 2-1/2 in OAL, 3 Flutes, VC10 Powdered Metal HSS, Bright, Square End Mills
OSG 6600400
$51.67
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Number of Flutes: 3
- Length of Cut: 3/4 in
- Material: VC10 Powdered Metal HSS
- Finish/Coating: Bright
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 50 deg
- Cutter Diameter: 5/16 in
- Cutter Diameter - Fractional: 5/16 in
- Diameter: 5/16 in
- Diameter - Decimal: 0.3125 in
- Diameter - Fractional: 5/16 in
- Flute Type: Multiple
- Length of Cut - Fractional: 3/4 in
- Overall Length - Fractional: 2-1/2 in
- Series: 660
- Shank Type: Weldon Flat
- Length Type: Regular Length
- Diameter - Metric: 7.937 mm
- Finish: Bright
EXOMILL VC-10® Premium Powdered Metal End Mills for Difficult to Machine Materials
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
OSG 6600400 Mill Diameter 5/16 in | Number of Flutes 3 | Length of Cut 3/4 in | VC-10 | Uncoated | Square End Mill
