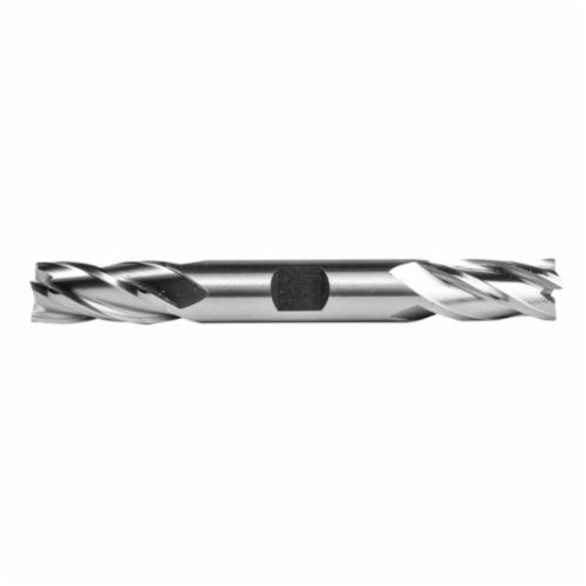

Union Butterfield® Union Butterfield® 948 Center Cutting Double End Regular Length Square End End Mill, 3/8 in Shank
PREDOR 5110162
$33.64
/ EA
Out of Stock
- Centercutting: Center Cutting
- Material: High Speed Steel
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Single or Double End: Double End
- Overall Length: 3-1/16 in
- Helix Angle: 30 deg
- Cutter Diameter - Fractional: 1/8 in
- Cutter Diameter - Metric: 3.175 mm
- Finish: Bright
- Length Type: Regular Length
- Series: 948
- Shank Type: Weldon Flat
- Type: Center Cutting
- Cutter Diameter - Decimal: 0.125 in
- High speed steel provides good wear resistance, it is commonly used for general purpose applications on both ferrous and nonferrous materials
- Uncoated tools have no additional surface treatment or coating for use on a broad range of materials
- Double end square end mills create sharp, unrounded cuts and have cutting edges on both ends for longer tool life
- Four flutes produce a better finish than fewer flutes
- Aluminum/aluminum alloys, cast iron, steel/steel alloys, titanium/titanium alloys compatible material
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
Union Butterfield® Union Butterfield® End Mill| Center Cutting Double End Regular Length Square End| Series: 948| 1/8 in Cutter Dia| 3-1/16 in Overall Length| 3/8 in Maximum Depth of Cut| 4 Flutes| Spiral Flute| 3/8 in Shank Dia| Right Hand Cutting| 30 deg Helix Angle| Weldon Flat Shank| HSS| Bright
