Walter Tools

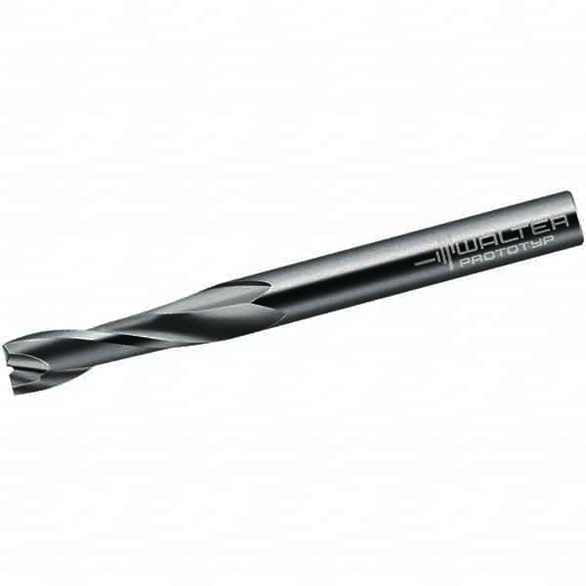

PROTYP 5083392 H602641-10 2 F 0.394 Dia End Mill
PROTYP 5083392
$118.76
/ EA
Out of Stock
- Centercutting: Centercutting
- Mill Diameter: 10 mm
- Number of Flutes: 2
- Length of Cut: 32 mm
- Material: Solid Carbide
- Finish/Coating: Bright, Uncoated
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Single or Double End: Single End
- Overall Length: 90 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 25 deg
- Chamfer Angle: 0 deg
- Coolant Through: No
- Diameter: 0.3937 in
- Diameter - Decimal: 0.3937 in
- Diameter - Metric: 10 mm
- Extended Reach: No
- Overall Length - Decimal: 3.543 in
- Overhang Length: 1.9685 in
- Series: Protostar AL 25
- Shank Type: Cylindrical
- Finish: Uncoated
Standard:
DIN1835-A/DIN6535-HA
DIN1835-A/DIN6535-HA
