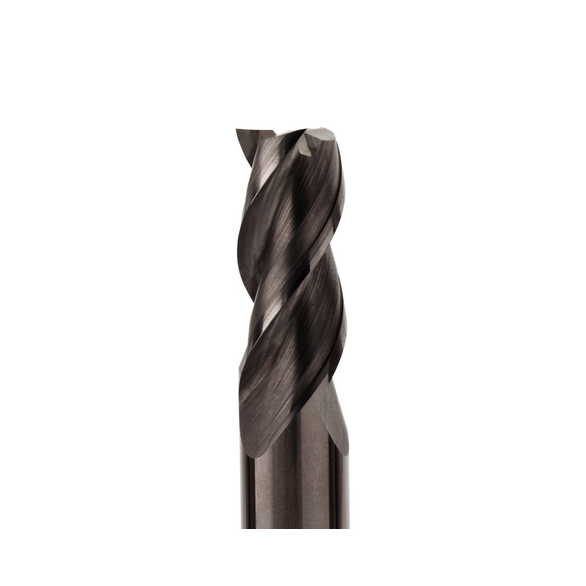

JABRO® Solid2 02881806 JS413 Center Cutting Regular Length Single End Square End End Mill, 16 mm Dia Cutter, 32 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 100 mm OAL, Uncoated

Seco's new generation of Jabro-Solid2 solid endmills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimised geometries and special edge preparations along with a new NXT coating technology.

• JABRO®-Solid2 - General machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 48 mm L minimum clamping
• 40 deg axial rake
• 20 deg radial rake
• D - Cylindrical tool shape
• Uneven pitch

General Machining, Radial Ramping, Plunging and Drilling Applications

JABRO JABRO Solid2 End Mill | Center Cutting Regular Length Single End Square End | Series: JS413 | 16 mm Cutter Dia | 100 mm Overall Length | 16 mm | 32 mm Maximum Depth of Cut | 3 Flutes | Spiral Flute | 16 mm Shank Dia | Right Hand Cutting | 40 deg Helix Angle | Cylindrical Shank | ANSI Code: JS413160D2SZ3.0 | ISO Code: JS413160D2SZ3.0 | Solid Carbide | Uncoated
