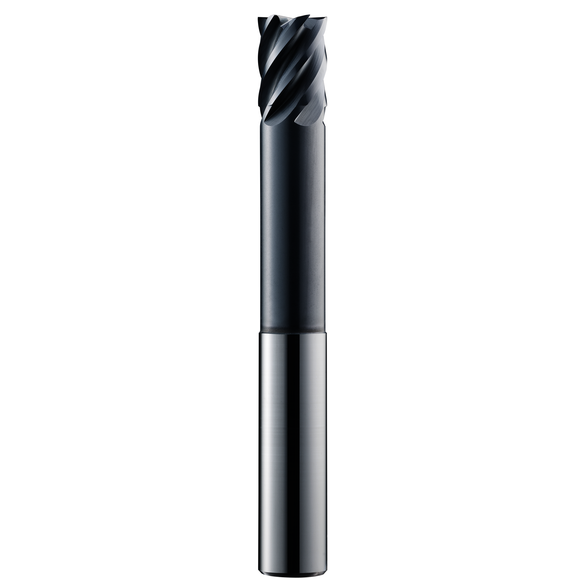

SGS 45109 51S High Performance HSM Metric Square End High Performance End Mill, 12 mm Dia Cutter, 15 mm Length of Cut, 6 Flutes, 12 mm Dia Shank, 100 mm OAL, TA Coated

The T-Carb 6-Flute high performance end mills are ideal for aggressive high speed machining using trochoidal and peel milling techniques. The unequal spacing of the larger flute count and variable pitch geometry allow the T-Carb to excel in multiple tooling operations calling for aggressive ramping and finishing, resulting in faster cycle times.

• Solid carbide provides better rigidity than high speed steel
• It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
• Designed for aggressive ramping at high speeds where evacuation and load are a factor
• Eccentric relief provides superior strength and smoother surface finish
• Exceptional performance with minimal deflection in difficult to machine materials such as titanium alloys and stainless steels
• Unequal flute spacing
• Positive rake angle
• External coolant
• Applicable materials: steels, stainless steels, cast iron and titanium
• +0.000/-0.050 mm D1, H6 D2 tolerances

Application: Aerospace, Medical, Power Generation, Automotive and General Engineering

SGS® High Performance End Mill | Center Cutting Long Reach Neck Single End Square End | Series: T-Carb | 51ML | 12 mm Cutter Dia | 100 mm Overall Length | 15 mm Maximum Depth of Cut | 6 Flutes | Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 41 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | TX Coated
