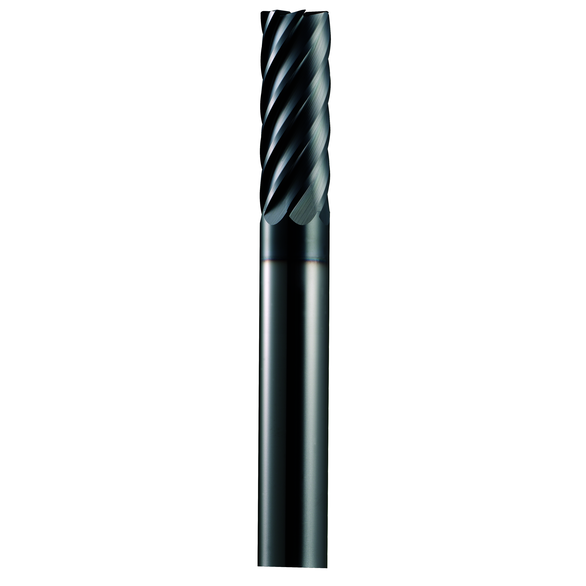

SGS 46626 Multi-Carb 66 High Performance Positive Rake Regular Length Square End High Performance End Mill, 25 mm Dia Cutter, 38 mm Length of Cut, 11 Flutes, 25 mm Dia Shank, 104 mm OAL, AlTiN Coated
- Centercutting: No Center Cutting
- Mill Diameter: 25 mm
- Number of Flutes: 11
- Length of Cut: 38 mm
- Material: Carbide
- Finish/Coating: AlTiN Coated
- Shank Diameter: 25 mm
- Shank Diameter - Decimal: 0.98425 in
- Shank Diameter - Metric: 25 mm
- Single or Double End: Single End
- Overall Length: 104 mm
- Cutting Direction: Right Hand
- Helix Angle: 35 deg
- Cutter Diameter: 25 mm
- Cutter Diameter - Metric: 25 mm
- Diameter: 0.98425 in
- Diameter - Decimal: 0.98425 in
- Length of Cut - Metric: 38 mm
- Overall Length - Metric: 104 mm
- Series: Multi-Carb 66
- Shank Type: Straight
- Type: High Performance Positive Rake Regular Length Square End
- Flute Type: Spiral
- Finish: AlTiN
The Multi-Carb end mill is a high feed finishing tool. The geometry excels in difficult to machine materials such as titanium and stainless steel. The solid design offers a high level of accuracy needed for the finishing of critical components. The odd number of flutes stabilizes the cut and reduces natural harmonics during machining. Ideal for reducing cycle times in aerospace and Medical applications.
- Engineered geometry for difficult materials such as titanium and stainless steel
- Odd number of flutes to stabilize during cut and reduce natural harmonics
- Positive rake angle
- External coolant
- Applicable materials: steels, stainless steels and titanium
Application: Aerospace, Medical, Power Generation, Automotive and General Engineering
SGS® High Performance End Mill | Center Cutting Long Length Single End | Series: Multi-Carb | 66M | 25 mm Cutter Dia | 104 mm Overall Length | 38 mm Maximum Depth of Cut | 11 Flutes | Spiral Flute | 25 mm Shank Dia | Right Hand Cutting | 35 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | AlTiN Coated
