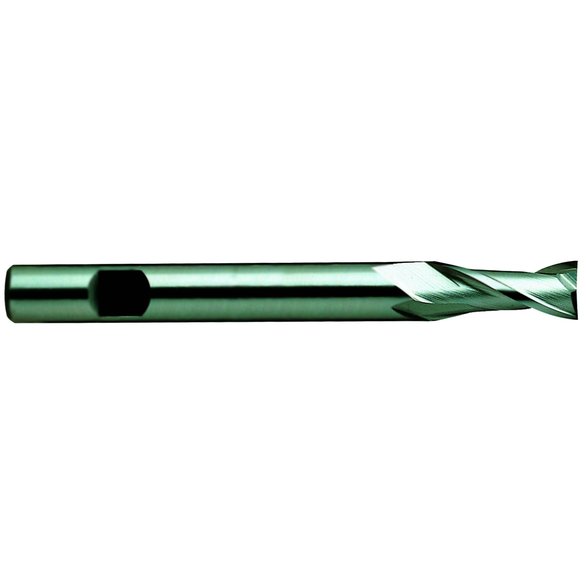

YG1 03301 0.3125 in Milling Dia, 0.75 in LOC, 3.3125 in OAL, 2 Flutes, HSSCo8, Bright, Square End Mills
YG1 03301
$19.94
/ EA
Out of Stock
- Centercutting: No Center Cutting
- Mill Diameter: 5/16 in
- Number of Flutes: 2
- Length of Cut: 3/4 in
- Material: Cobalt
- Finish/Coating: Uncoated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Single or Double End: Single End
- Overall Length: 3-5/16 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Diameter: 5/16 in
- Diameter - Decimal: 0.3125 in
- Diameter - Fractional: 5/16 in
- Extended Reach: Yes
- Flute Size: 3/4 in
- Flute Type: Finisher
- Length Type: Extended Length
- Overall Length - Decimal: 3.3125 in
- Overall Length - Fractional: 3-5/16 in
- Reach Length: 1-3/4 in
- Shank Type: Flat
- Diameter - Metric: 7.937 mm
Features and Benefits:
Provided with the longest flute length and suitable for high accuracy machining of deep step.
Provided with the longest flute length and suitable for high accuracy machining of deep step.
