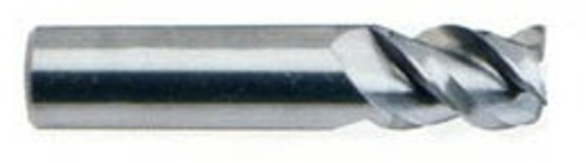

YG-1 83903TC E5059 Regular Length End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiCN Coated

YG1 83904TC
$77.92 / EA
Out of Stock
YG-1 83903TC E5059 Regular Length End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiCN Coated
  • Centercutting: No Center Cutting
  • Mill Diameter: 3/8 in
  • Number of Flutes: 3
  • Length of Cut: 1-1/2 in
  • Material: Carbide
  • Finish/Coating: TiCN-Coated
  • Shank Diameter: 3/8 in
  • Shank Diameter - Decimal: 0.375 in
  • Shank Diameter - Fractional: 3/8 in
  • Shank Diameter - Metric: 9.525 mm
  • Single or Double End: Single End
  • Overall Length: 3-1/2 in
  • Helix Angle: 50 deg
  • Diameter - Fractional: 3/8 in
  • Flute Type: Finisher
  • Length Type: Long Length
  • Overall Length - Fractional: 1/2 in
  • Series: E5059
  • Diameter - Decimal: 0.375 in
  • Diameter - Metric: 9.525 mm
  • Finish: TiCN
Features and Benefits:

Designed to machine stainless steel, inconel, titanium and other hard to machine materials.
It's 3 flute design gives high stability and allows good chip removal in plunging & slotting operations.
The high rake angle and 50 degree medium helix allows an extremely wide range of application.
YG:TYLON super TiAlN coating are recommended for maximum performance.
