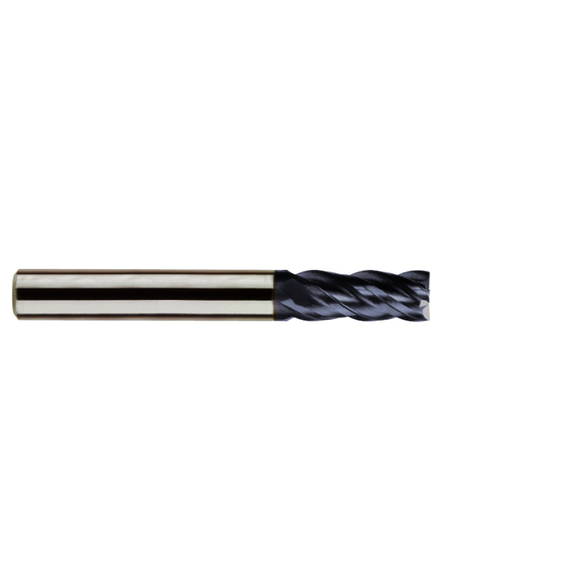

YG-1 4G Mill GMF26024 Center Cut High Performance Square End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, AlCrN Coated
YG1 GMF26024
$68.18
/ EA
Out of Stock
- Centercutting: No Center Cutting
- Mill Diameter: 3/8 in
- Number of Flutes: 4
- Length of Cut: 1 in
- Material: Carbide
- Finish/Coating: Coated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Single or Double End: Single End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 38 deg
- Diameter: 3/8 in
- Flute Type: Finisher
- Grade: 4G
- Overall Length - Decimal: 3 in
- Series: GMF26
- Type: High Performance
- Diameter - Fractional: 3/8 in
- Diameter - Decimal: 0.375 in
- Diameter - Metric: 9.525 mm
Features and Benefits:
New coating and new tool geometry gives outstanding cutting performance and wear resistance.
Excellent performance when cutting steels, up to HRc55.
Due to Multiple Helix on 1/8 and over diameter end mills, vibration is minimized and tool life increased.
Due to gash land geometry used at end tooth, heavy duty cutting can be achieved.
Various length products Available.
New coating and new tool geometry gives outstanding cutting performance and wear resistance.
Excellent performance when cutting steels, up to HRc55.
Due to Multiple Helix on 1/8 and over diameter end mills, vibration is minimized and tool life increased.
Due to gash land geometry used at end tooth, heavy duty cutting can be achieved.
Various length products Available.
