Dixon Valve & Coupling Company

Legris by Dixon 31755610 Hybrid Push-In Connector, 1/8 x 1/4 in, MBSPT x Tube, 290 psi, Nylon/Brass, Domestic

DIXVAL 31755610
$0.00 / EA
Out of Stock

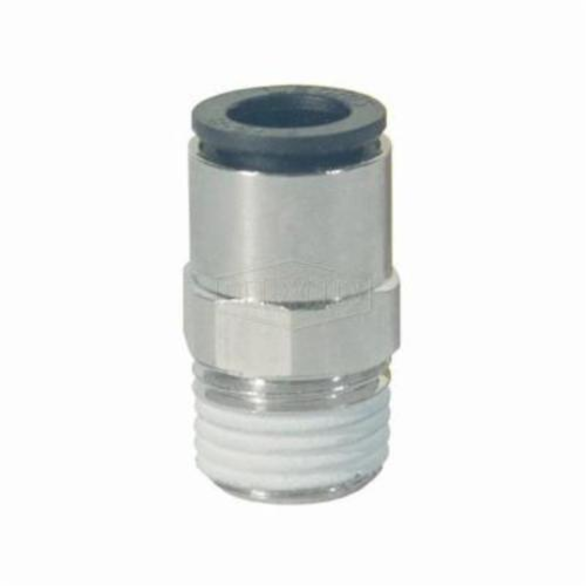

Legris by Dixon 31755610 Hybrid Push-In Connector, 1/8 x 1/4 in, MBSPT x Tube, 290 psi, Nylon/Brass, Domestic
  • Domestic/Import: Domestic
  • End Type: MBSPT x Tube
  • Material: Nylon/Brass
  • Nominal Size: 1/8 x 1/4 in
  • Pressure Rating: 290 psi
  • Temperature Rating: -4 to 175 deg F
  • Type: Hybrid
  • Warranty: Limited
  • Positive seal: sealing and holding is accomplished instantaneously
  • Reusable: connect and disconnect numerous times
  • Full flow: fitting seals on outside diameter of tubing
  • Pre-applied thread sealant on all tapered male pipe threads
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube
  • Vacuum of 28 in Hg (99% vacuum) capability
  • Buna-N seal
  • Maximum circuit pressure depends equally on the type and diameter of the tube used
  • Pressure rating given at ambient temperature 70 deg F
  • Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling

Legris by Dixon Push-In Connector | Hybrid | 1/8 x 1/4 in Nominal Size | MBSPT x Tube | 290 psi | -4 to 175 deg F | Nylon/Brass | Domestic
