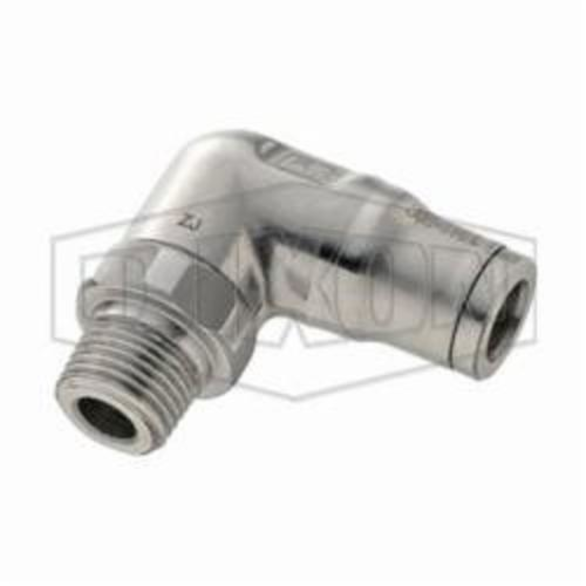

Legris by Dixon 38895611 Push-In Elbow, 1/8 x 1/4 in, MNPT x Tube, 290 psi, Stainless Steel, Domestic
DIXVAL 38895611
$0.00
/ EA
Out of Stock
- Domestic/Import: Domestic
- End Type: MNPT x Tube
- Material: Stainless Steel
- Nominal Size: 1/8 x 1/4 in
- Pressure Rating: 290 psi
- Temperature Rating: -4 to 245 deg F
- Warranty: Limited
- Compatible with a range of tubes including semi-rigid nylon tube, flexible polyurethane tube, low-density polyethylene, PTFE tube FEP 140, stainless steel and copper tube (when grooved)
- AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet
- Silicone free
- FKM o-ring seal
- The body is orientable for positioning purposes
- Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user
- Maximum circuit pressure depends equally on the type and diameter of the tube used
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Application:
Suitable for many industries such as chemical, food, packaging and medical
Legris by Dixon Push-In Elbow | 1/8 x 1/4 in Nominal Size | MNPT x Tube | 290 psi | -4 to 245 deg F | Stainless Steel | Domestic
