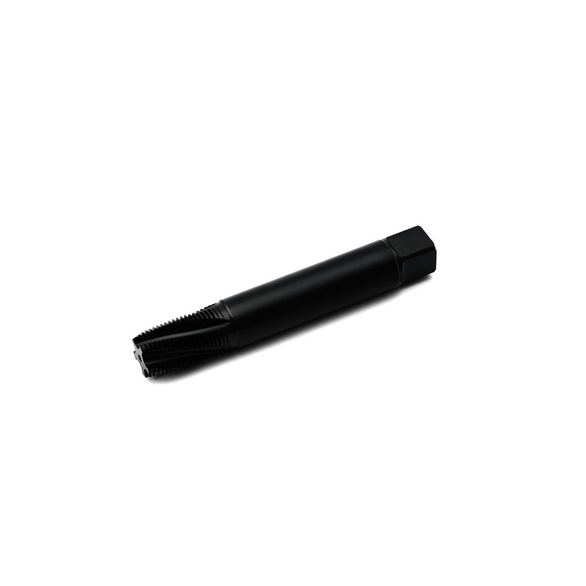

Seco 02880755 Threadmaster™ MTH-V048 Spiral Flute Tap, Right Hand Cutting, 3/4-14 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 5 Flutes, TiN Coated, Cobalt
SECO 02880755
$356.83
/ EA
Out of Stock
- Flute Direction: Right Hand
- Overall Length: 140 mm
- Thread Length: 26 mm
- Thread Size: 3/4-14
- Thread Standard: NPT
- Number of Flutes: 5
- Material: Cobalt
- Finish/Coating: TiN Coated
- Chamfer Type: Modified Bottoming
- Class of Fit: 2B
- Coolant Through: No
- Cutting Direction: Right Hand
- Finish: TiN
- Overall Length - Metric: 140 mm
- Series: Threadmaster MTH-V048
- Shank Diameter - Decimal: 0.90551 in
- Shank Diameter - Metric: 23 mm
- Shank Length - Metric: 62 mm
- Thread Length - Metric: 26 mm
- Thread Limit: H6
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN Rated, ANSI Specified
For through hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-V048 | Measurement System: Imperial | NPT Thread | 3/4-14 Thread | Modified Bottoming Chamfer | 5 Flutes | Cobalt | TiN Coated | Class of Fit: 2B | Right Hand Cutting | 26 mm Thread Length | 140 mm Overall Length | 23 mm Shank Dia | 62 mm Shank Length | Right Hand Flute Direction | H6 Thread Limit | Material Application: Stainless Steel | Steel | Aluminum Alloy and Copper Alloy | No Through Coolant
