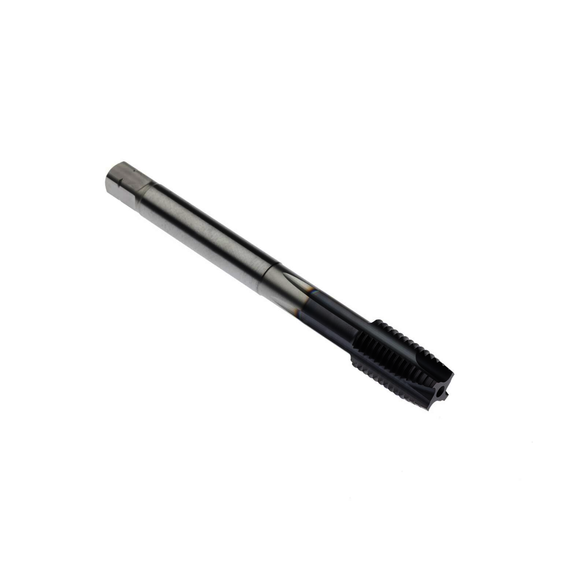

Seco 02999975 Threadmaster™ MTH-P001 Spiral Flute Tap, Right Hand Cutting, M4x0.7 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, Powdered Metal
SECO 02999975
$59.67
/ EA
Out of Stock
- Flute Direction: Right Hand
- Overall Length: 70 mm
- Shank Diameter: 6 in
- Thread Length: 13 mm
- Thread Size: M4x0.7
- Thread Standard: Metric Thread
- Number of Flutes: 3
- Material: Powdered Metal
- Finish/Coating: TiAlN Coated
- Chamfer Type: Modified Bottoming
- Class of Fit: 6H
- Coolant Through: No
- Cutting Direction: Right Hand
- Finish: TiAIN
- Overall Length - Metric: 70 mm
- Series: Threadmaster MTH-P001
- Shank Diameter - Decimal: 0.23622 in
- Size: M4x0.7
- Thread Length - Metric: 13 mm
- Thread Limit: H6
- Shank Diameter - Metric: 6 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
For blind hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-P001 | Measurement System: Metric | M4x0.7 Thread | Modified Bottoming Chamfer | 3 Flutes | Powdered Metal | TiAlN Coated | Class of Fit: 6H | Right Hand Cutting | 13 mm Thread Length | 70 mm Overall Length | 6 mm Shank Dia | Right Hand Flute Direction | H6 Thread Limit | Material Application: Steel | No Through Coolant
