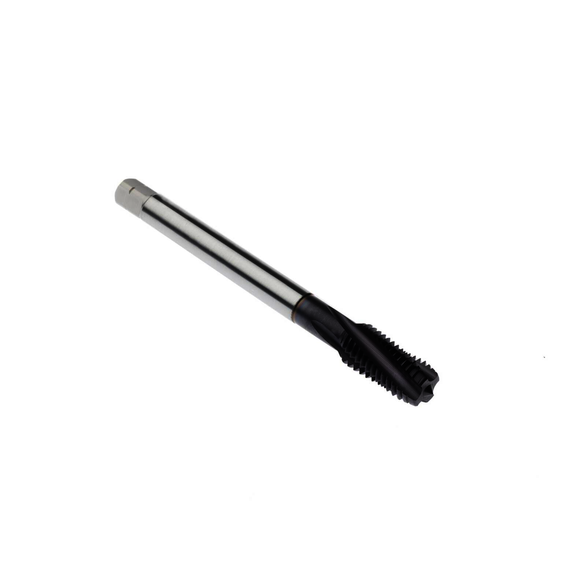

Seco 02999984 Threadmaster™ MTH-P002 Spiral Flute Tap, Right Hand Cutting, M20x2.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiAlN Coated, Powdered Metal
SECO 02999984
$218.86
/ EA
Out of Stock
- Flute Direction: Right Hand
- Overall Length: 140 mm
- Thread Length: 30 mm
- Thread Size: M20x2.5
- Thread Standard: Metric Thread
- Number of Flutes: 4
- Material: Powdered Metal
- Finish/Coating: TiAlN Coated
- Chamfer Type: Modified Bottoming
- Class of Fit: 6H
- Coolant Through: No
- Cutting Direction: Right Hand
- Finish: TiAIN
- Overall Length - Metric: 140 mm
- Series: Threadmaster MTH-P002
- Shank Diameter - Decimal: 0.63 in
- Size: M20x2.5
- Thread Length - Metric: 30 mm
- Thread Limit: H6
- Shank Diameter - Metric: 16 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For blind hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-P002 | Measurement System: Metric | M20x2.5 Thread | Modified Bottoming Chamfer | 4 Flutes | Powdered Metal | TiAlN Coated | Class of Fit: 6H | Right Hand Cutting | 30 mm Thread Length | 140 mm Overall Length | 16 mm Shank Dia | Right Hand Flute Direction | H6 Thread Limit | Material Application: Steel | No Through Coolant
