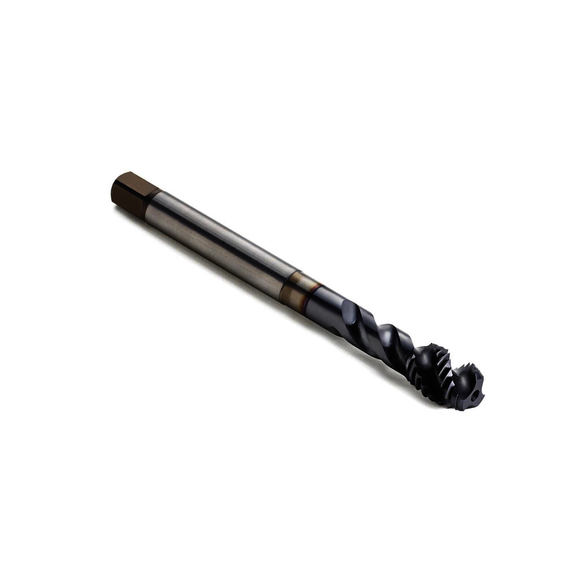

Seco 03000124 Threadmaster™ MTH-M004 Spiral Flute Tap, Right Hand Cutting, M20x2.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiCN Coated, Cobalt
SECO 03000124
$337.66
/ EA
Out of Stock
- Flute Direction: Right Hand
- Overall Length: 140 mm
- Thread Length: 25 mm
- Thread Size: M20x2.5
- Thread Standard: Metric Thread
- Number of Flutes: 4
- Material: Cobalt
- Finish/Coating: TiCN Coated
- Chamfer Type: Modified Bottoming
- Class of Fit: 6H
- Coolant Through: No
- Cutting Direction: Right Hand
- Overall Length - Metric: 140 mm
- Series: Threadmaster MTH-M004
- Shank Diameter - Decimal: 0.63 in
- Size: M20x2.5
- Thread Length - Metric: 25 mm
- Thread Limit: H6
- Shank Diameter - Metric: 16 mm
- Finish: TiCN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For blind hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-M004 | Measurement System: Metric | M20x2.5 Thread | Modified Bottoming Chamfer | 4 Flutes | Cobalt | TiCN Coated | Class of Fit: 6H | Right Hand Cutting | 25 mm Thread Length | 140 mm Overall Length | 16 mm Shank Dia | Right Hand Flute Direction | H6 Thread Limit | Material Application: Stainless Steel | No Through Coolant
