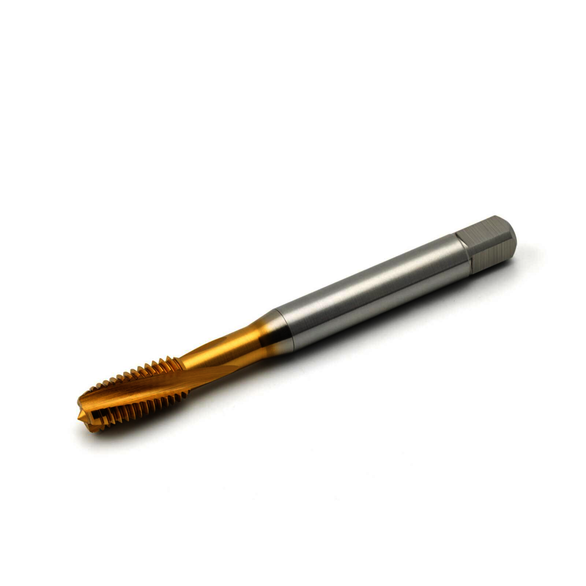

Seco 03019188 Threadmaster™ MTH-V015 Spiral Flute Tap, Right Hand Cutting, M3x0.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, Cobalt
SECO 03019188
$36.34
/ EA
Out of Stock
- Flute Direction: Right Hand
- Overall Length: 56 mm
- Shank Diameter: 3.5 in
- Thread Length: 9 mm
- Thread Size: M3x0.5
- Thread Standard: Metric Thread
- Number of Flutes: 3
- Material: Cobalt
- Finish/Coating: TiN Coated
- Capacity: 11 mm
- Chamfer Type: Modified Bottoming
- Class of Fit: 6H
- Coolant Through: No
- Cutting Direction: Right Hand
- Finish: TiN
- Overall Length - Metric: 56 mm
- Series: Threadmaster MTH-V015
- Shank Diameter - Decimal: 0.13779 in
- Shank Diameter - Metric: 3.5 mm
- Size: M3x0.5
- Thread Length - Metric: 9 mm
- Thread Limit: H6
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 371
For blind hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-V015 | Measurement System: Metric | M3x0.5 Thread | Modified Bottoming Chamfer | 3 Flutes | Cobalt | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 9 mm Thread Length | 56 mm Overall Length | 3.5 mm Shank Dia | Right Hand Flute Direction | H6 Thread Limit | Material Application: Stainless Steel | Steel | Aluminum Alloy and Copper Alloy | No Through Coolant
