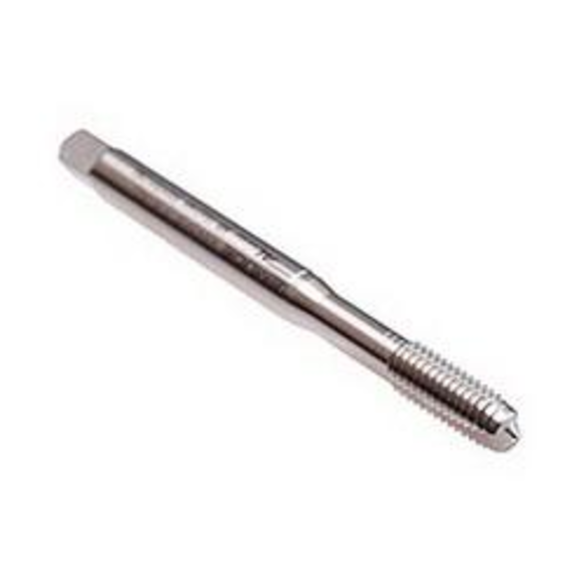

Emuge B0204500.0040 Rekord 1B-AL B0204500 Form C Reinforced Shank Straight Flute Spiral Point Tap, Right Hand Cutting, M4x0.7 Thread, Plug Chamfer, 2 Flutes, Bright, HSS-E
EMUGE B0204500.0040
$45.51
/ EA
Out of Stock
- Coolant Through: No
- Shank Diameter - Metric: 4.5 mm
- Thread Standard: Coarse
- Thread Size: M4x0.7
- Number of Flutes: 2
- Material: HSS-E
- Class of Fit: 6H
- Finish/Coating: Bright
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 63 mm
- Series: Rekord 1B-AL B0204500
- Thread Length - Metric: 13 mm
- Higher rake angle provides better shearing action for maximum tool life
- DIN/DIN standard dimensions for overall length and shank size
- For wrought aluminum materials
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Point Tap | Form C Reinforced Shank Straight Flute | Series: Rekord 1B-AL B0204500 | Measurement System: Metric | Coarse | M4x0.7 | Plug Chamfer | 2 Flutes | HSS-E | Bright | Class of Fit: 6H | Right Hand Cutting | 13 mm Thread Length | 63 mm Overall Length | 4.5 mm Shank Dia | Aluminum Alloys Material Application
