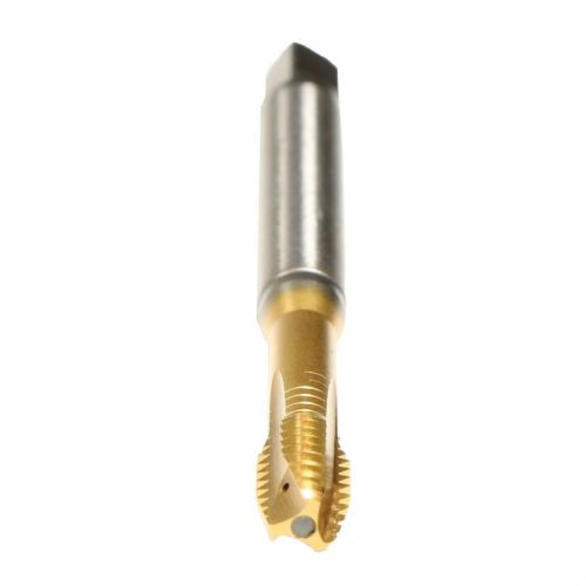

Emuge B1088F01.0060 Rekord 1B-Z-IKZN-PM B1088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M6x1 Thread, 4-5 Plug Chamfer, TiN 70 Coated, HSS-E-PM
EMUGE B1088F01.0060
$119.90
/ EA
Out of Stock
- Coolant Through: Yes
- Shank Diameter - Metric: 6 mm
- Thread Standard: MC
- Material: HSS-E-PM
- Class of Fit: 6HX
- Finish/Coating: TiN 70 Coated
- Chamfer Type: 4-5 Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 80 mm
- Series: Rekord 1B-Z-IKZN-PM B1088F01
- Thread Length - Metric: 10 mm
- InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
- Spiral point design to push the chips forward
- TiN coating provides additional wear-resistance and reduces cold welding
- Z designation for CNC controlled machines
- Spiral point creates tight curled chips that are pushed ahead of the tap
- Replacement part for old tool B1083701.0060
- IKZN - radial coolant hole design
- DIN/DIN standard dimensions for overall length and shank size
Standards/Approvals: DIN 13|ISO Certified
For through hole applications in long chipping materials such as stainless steel, steel and aluminum alloys
Emuge Spiral Point Tap | Form B Reinforced Shank | Series: Rekord 1B-Z-IKZN-PM B1088F01 | Measurement System: Metric | MC | M6x1 | 4-5 Plug Chamfer | HSS-E-PM | TiN 70 Coated | Class of Fit: 6HX | Right Hand Cutting | 10 mm Thread Length | 80 mm Overall Length | 6 mm Shank Dia | Aluminum Alloys | Cast Iron | Copper Alloys | Pure Titanium | Stainless Steel and Steel Material Application | Yes Through Coolant (Yes/No)
