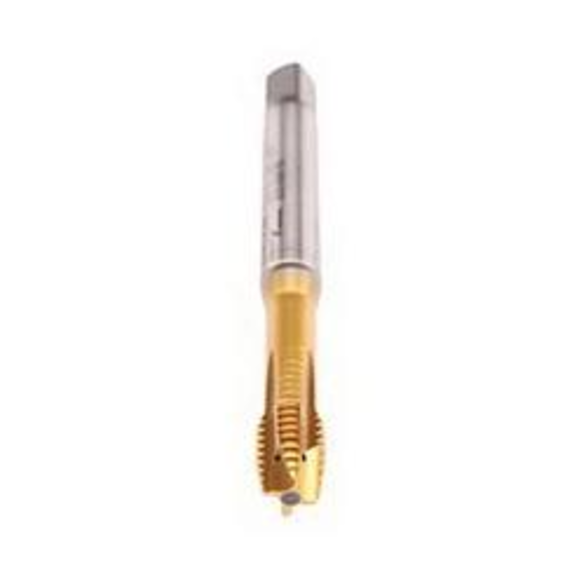

Emuge BU089300.5041 Rekord 1B-VA-IKZN BU089300 Form B Reinforced Shank Straight Flute Spiral Point Tap, Right Hand Cutting, #10-32 Thread, Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E
EMUGE BU089300.5041
$122.40
/ EA
Out of Stock
- Coolant Through: Yes
- Overall Length: 2.756 in
- Shank Diameter: 0.194 in
- Thread Length: 0.591 in
- Thread Standard: UNF
- Thread Size: #10-32
- Number of Flutes: 3
- Material: HSS-E
- Class of Fit: 2B
- Finish/Coating: TiCN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Series: Rekord 1B-VA-IKZN BU089300
- IKZN - radial coolant hole design
- Spiral point creates tight curled chips that are pushed ahead of the tap
- TiCN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications in stainless steel, steel and aluminum alloys
Emuge Spiral Point Tap | Form B Reinforced Shank Straight Flute | Series: Rekord 1B-VA-IKZN BU089300 | Measurement System: Imperial | UNF | #10-32 | Plug Chamfer | 3 Flutes | HSS-E | TiCN Coated | Class of Fit: 2B | Right Hand Cutting | 0.591 in Thread Length | 2.756 in Overall Length | 0.194 in Shank Dia | Steel | Stainless Steel | Cast Iron | Aluminum Alloys and Copper Alloys Material Application
