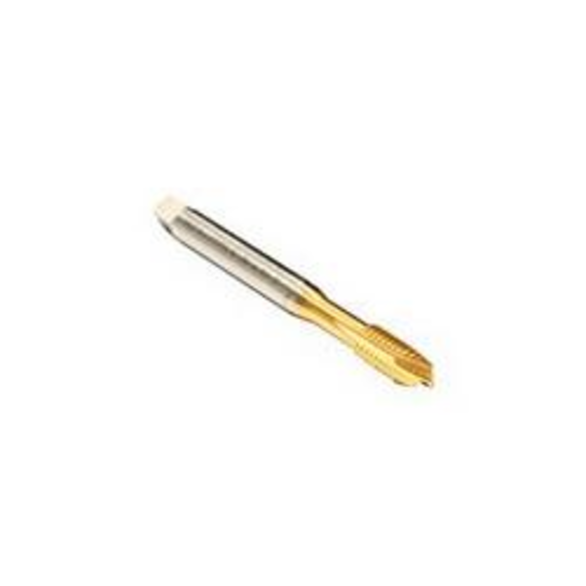

Emuge BU201400.5045 Rekord 1B-STEEL BU201400 Form B Reinforced Shank Straight Flute Spiral Point Tap, Right Hand Cutting, 3/8-24 Thread, Plug Chamfer, 4 Flutes, TiN Coated, HSS-E
EMUGE BU208400.5045
$69.26
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 3.937 in
- Shank Diameter: 0.381 in
- Thread Length: 0.709 in
- Thread Standard: UNF
- Thread Size: 3/8-24
- Number of Flutes: 4
- Material: HSS-E
- Class of Fit: 2B
- Finish/Coating: TiN Coated
- Chamfer Type: 4-5 Plug
- Cutting Direction: Right Hand
- Series: Rekord 1B-STEEL-L BU208400
- Spiral point creates tight curled chips that are pushed ahead of the tap
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications in long chipping materials
Emuge Spiral Point Tap | Form B Reinforced Shank Straight Flute | Series: Rekord 1B-STEEL BU201400 | Measurement System: Imperial | UNF | 3/8-24 | Plug Chamfer | 4 Flutes | HSS-E | TiN Coated | Class of Fit: 2B | Right Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.381 in Shank Dia | Steel | Stainless Steel | Cast Iron | Aluminum Alloys and Copper Alloys Material Application
