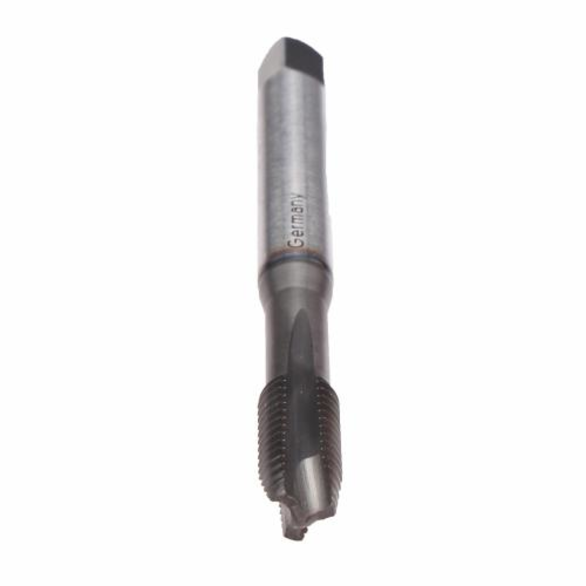

Emuge BU20C300.5009 Rekord 1B-VA BU20C300 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, 1/4-20 Thread, 4-5 Plug Chamfer, 3 Flutes, GLT-1 Coated, HSS-E
EMUGE BU20C300.5009
$62.77
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 3.15 in
- Shank Diameter: 0.255 in
- Thread Length: 0.669 in
- Thread Standard: UNC
- Thread Size: 1/4-20
- Number of Flutes: 3
- Material: HSS-E
- Class of Fit: 2BX
- Finish/Coating: GLT-1 Coated
- Chamfer Type: 4-5 Plug
- Cutting Direction: Right Hand
- Series: Rekord 1B-VA BU20C300
- InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
- Spiral point design to push the chips forward
- GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
- Replacement part for old tool BU201700.5009
- Spiral point creates tight curled chips that are pushed ahead of the tap
- GLT-1 coating offers a hard surface coating and anti-friction layer perfect for all applications
- DIN/ANSI taps made with Emuge's trademark long shanks DIN length for extra reach and ANSI shanks
Standards/Approvals: ASME B1.1|ANSI Specified|DIN 371, 376
For through hole applications
Emuge Spiral Point Tap | Form B Reinforced Shank | Series: Rekord 1B-VA BU20C300 | Measurement System: Imperial | UNC | 1/4-20 | 4-5 Plug Chamfer | 3 Flutes | HSS-E | GLT-1 Coated | Class of Fit: 2BX | Right Hand Cutting | 0.669 in Thread Length | 3.15 in Overall Length | 0.255 in Shank Dia | Cast Iron | Copper Zinc Alloys | Stainless Steel and Steel Material Application | No Through Coolant (Yes/No)
