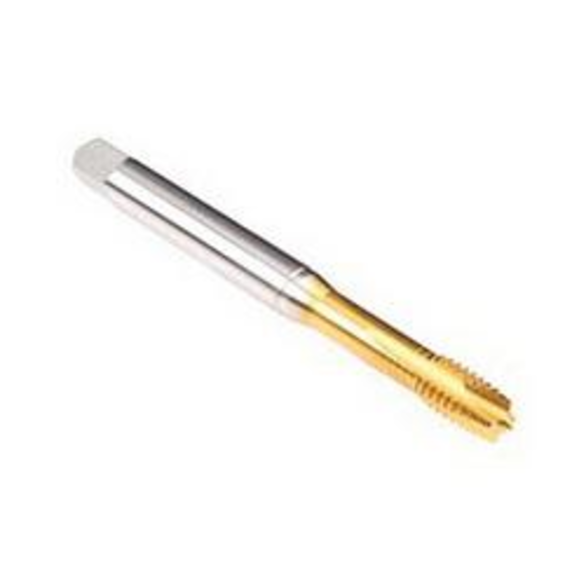

Emuge BW203701.5011 Rekord 1B-SPEED IKZN BW203701 Form B Reinforced Shank Straight Flute Spiral Point Tap, Right Hand Cutting, 3/8-16 Thread, Plug Chamfer, 4 Flutes, TiN Coated, HSS-E
EMUGE BW208F01.5011
$173.64
/ EA
Out of Stock
- Coolant Through: Yes
- Overall Length: 3.937 in
- Shank Diameter: 0.381 in
- Thread Length: 0.63 in
- Thread Standard: UNC
- Thread Size: 3/8-16
- Number of Flutes: 4
- Material: HSS-E-PM
- Class of Fit: 2BX
- Finish/Coating: TiN 70 Coated
- Chamfer Type: 4-5 Plug
- Cutting Direction: Right Hand
- Series: Rekord 1B-Z-SPEED-IKZN-PM BW208F01
- Rekord B style taps have a spiral point grind that pushes chips forward
- Speed taps are able to operate at higher cutting speeds than conventional designs
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
- IKZN - radial coolant hole construction
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Point Tap | Form B Reinforced Shank Straight Flute | Series: Rekord 1B-SPEED IKZN BW203701 | Measurement System: Imperial | UNC | 3/8-16 | Plug Chamfer | 4 Flutes | HSS-E | TiN Coated | Class of Fit: 2BX | Right Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.381 in Shank Dia | Steel | Stainless Steel | Cast Iron | Aluminum Alloys and Copper Alloys Material Application
