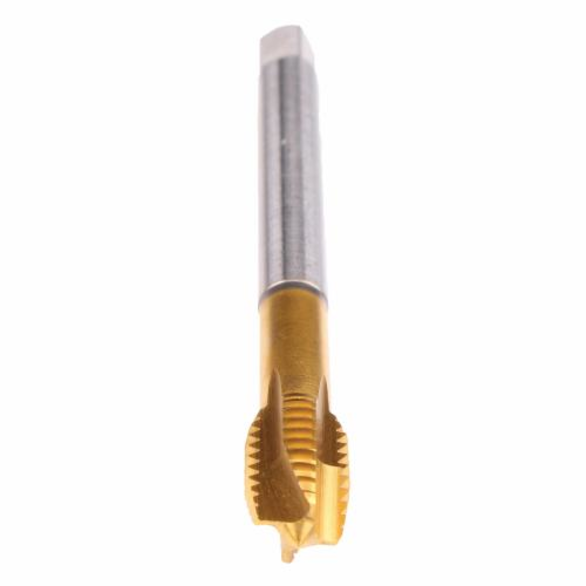

Emuge C0208F01.0277 Rekord 2B-Z-PM C0208F01 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, 4-5 Plug Chamfer, 4 Flutes, TiN 70 Coated, HSS-E-PM
EMUGE C0208F01.0277
$131.75
/ EA
Out of Stock
- Coolant Through: No
- Shank Diameter - Metric: 7 mm
- Thread Standard: MF
- Number of Flutes: 4
- Material: HSS-E-PM
- Class of Fit: 6HX
- Finish/Coating: TiN 70 Coated
- Chamfer Type: 4-5 Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 100 mm
- Series: Rekord 2B-Z-PM C0208F01
- Thread Length - Metric: 16 mm
- InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
- Spiral point design to push the chips forward
- TiN coating provides additional wear-resistance and reduces cold welding
- Z designates that the geometry is best suited for CNC equipment with synchronous feed control
- Replacement part for old tool C0203701.0277
- Spiral point creates tight curled chips that are pushed ahead of the tap
- DIN/DIN standard dimensions for overall length and shank size
Standards/Approvals: DIN 13|ISO Certified
For through hole applications in long chipping materials
Emuge Spiral Point Tap | Form B Reduced Shank | Series: Rekord 2B-Z-PM C0208F01 | Measurement System: Metric | MF | M10x1.25 | 4-5 Plug Chamfer | 4 Flutes | HSS-E-PM | TiN 70 Coated | Class of Fit: 6HX | Right Hand Cutting | 16 mm Thread Length | 100 mm Overall Length | 7 mm Shank Dia | Aluminum Cast Alloys | Cast Iron | Copper Alloys | Pure Titanium | Stainless Steel and Steel Material Application | No Through Coolant (Yes/No)
