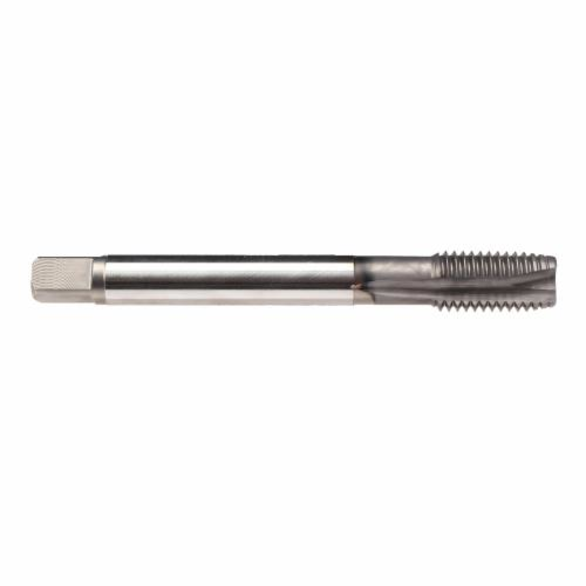

Emuge C020C300.0130 Rekord 2B-VA C020C300 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M30x3.5 Thread, 4-5 Plug Chamfer, 4 Flutes, GLT-1 Coated, HSS-E

• InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
• Spiral point design to push the chips forward
• GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
• Replacement part for old tool C0203000.0130
• Spiral point creates tight curled chips that are pushed ahead of the tap
• GLT-1 coating hard surface coating with anti-friction layer, in a PVD process 500 deg C a coating thickness of 2 to 4 um can be realized
• The combination of a hard surface coating approximate 3000 HV with an anti-friction top layer yields decisive tool life advantages, chip flow is also improved
• DIN/DIN standard dimensions for overall length and shank size

Standards/Approvals: DIN 13|ISO Certified

For through hole applications

Emuge Spiral Point Tap | Form B Reduced Shank | Series: Rekord 2B-VA C020C300 | Measurement System: Metric | MC | M30x3.5 | 4-5 Plug Chamfer | 4 Flutes | HSS-E | GLT-1 Coated | Class of Fit: 6H | Right Hand Cutting | 40 mm Thread Length | 180 mm Overall Length | 22 mm Shank Dia | Cast Iron | Copper Zinc Alloys | Stainless Steel and Steel Material Application | No Through Coolant (Yes/No)
