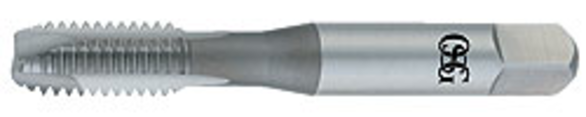

OSG 1101200300 M5x0.80 Size, Metric Coarse, 2 Flute, Spiral Point Tap
OSG 1101200300
$13.65
/ EA
Out of Stock
- Coolant Through: No
- Material Application: 6061/7075 Aluminum, Cast Aluminum, Cast Iron, 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel and 1065 High Carbon Steel
- Shank Diameter - Decimal: 4.92 mm
- Thread Standard: Coarse
- Thread Size: M5-0.8
- Number of Flutes: 2
- Material: HSS
- Finish/Coating: Bright
- Chamfer Type: 3.5P-4.5P Plug
- Cutting Direction: Right Hand
- Measurement System: Metric
- Overall Length - Metric: 60 mm
- Series: 142H
- Shank Length - Metric: 37 mm
- Size: M5
- Thread Length - Metric: 13 mm
General Purpose spiral point tap series that provides exceptional value for all general threading applications.
- HSS material
- Increased wear resistance
- Spiral Point
- For through hole applications
- Bright, Steam Oxide surface treatment
- S/O increases mechanical lubricity
- TiCN coating
- Improves wear resistance for extended tap life
- Inch & Metric
- Complete Offering
Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steels
OSG 1101200300 M5x0.80 Size | Metric Coarse | 2 Flute | Bright | Spiral Point Tap
