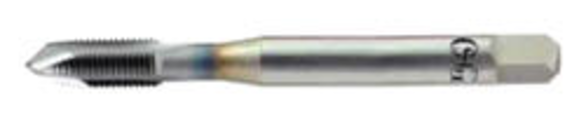

OSG 1101700308 8-32 Size, UNC, 3 Flute, Spiral Point Tap
OSG 1101700308
$23.46
/ EA
Out of Stock
- Coolant Through: No
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Shank Diameter - Decimal: 0.168 in
- Thread Length: 0.382 in
- Thread Standard: UNC
- Thread Size: #8-32
- Number of Flutes: 3
- Thread Limit: H3
- Material: HSS-E
- Class of Fit: JIS 2
- Finish/Coating: V-Coated
- Chamfer Type: 3.5P-4.5P Plug
- Cutting Direction: Right Hand
- Measurement System: Imperial
- Overall Length - Decimal: 2.48 mm
- Series: 11017
- Shank Length - Fractional: 1-5/8 in
- Size: #8
HY-PRO® V DIN is the premium solution for unsurpassed performance in difficult to machine materials. This premium spiral point tap is made from vanadium high speed steel.
- HSSE material
- Increased wear resistance
- Spiral Point
- For through hole applications
- OSG V-coating
- Increased hardness, lubricity & wear resistance
- DIN overall length
- Provides additional reach capability
- Inch & Metric
- Complete Offering
Application: Cast iron, Carbon Steel, Alloy Steels, Die Steel, SS 300 & 400Stainless Steel 17-4pH, Hardened Steel ~35 HrC
OSG 1101700308 8-32 Size | UNC | 3 Flute | 2B | V | Spiral Point Tap
