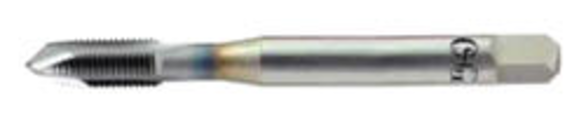

OSG 1111700808 M8x1.25 Size, Metric Coarse, 3 Flute, Spiral Point Tap
OSG 1111700808
$47.03
/ EA
Out of Stock
- Coolant Through: No
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Shank Diameter - Decimal: 8.07 mm
- Thread Standard: Coarse
- Thread Size: M8-1.25
- Number of Flutes: 3
- Thread Limit: D5
- Material: HSS-E
- Class of Fit: H3
- Finish/Coating: V-Coated
- Chamfer Type: 3.5P-4.5P Plug
- Cutting Direction: Right Hand
- Measurement System: Metric
- Overall Length - Metric: 90 mm
- Series: 11117
- Shank Length - Metric: 55 mm
- Size: M8
- Thread Length - Metric: 15 mm
HY-PRO® V DIN is the premium solution for unsurpassed performance in difficult to machine materials. This premium spiral point tap is made from vanadium high speed steel.
- HSSE material
- Increased wear resistance
- Spiral Point
- For through hole applications
- Nitride surface treatment
- Extra surface hardness for longer life
- DIN overall length
- Provides additional reach capability
- Inch & Metric
- Complete Offering
Application:Stainless Steels : A286, 17-4PH, 15-5PH, 304, 304L, 303Cast iron, Carbon Steels, Die Steels, Stainless Steels, Hardened Steel ~35 HrCAerospace FastenersHigh Speed Tapping
OSG 1111700808 M8x1.25 Size | Metric Coarse | 3 Flute | 6H | TiCN | Spiral Point Tap
