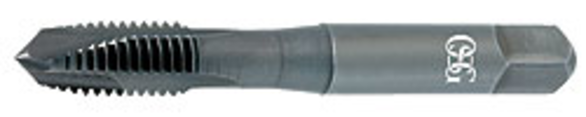

OSG 1708001 3/8-16 Size, UNC, 3 Flute, Spiral Point Tap
OSG 1708001
$49.43
/ EA
Out of Stock
- Coolant Through: No
- Material Application: Hardened Steel, High Nickel Alloy, Inconel Nickel Alloy, Stainless Steel, Super Alloy and Titanium
- Shank Diameter - Decimal: 0.38 in
- Thread Length: 0.917 in
- Thread Standard: UNC
- Thread Size: 3/8-16
- Number of Flutes: 3
- Thread Limit: H5
- Material: VC-10
- Finish/Coating: Steam Oxide
- Chamfer Type: 4.5P-5.5P Plug
- Cutting Direction: Right Hand
- Measurement System: Imperial
- Overall Length - Decimal: 2.93 mm
- Series: 312NI
- Shank Length - Fractional: 1-1/2 in
- Size: 3/8
EXOTAP® VC-10 Ni is the premium solution for Nickel alloys and Heat Resistant Super Alloys.
- Premium Powdered Metal VC-10 substrate
- Increased hardness for longer life
- Spiral Point
- For through hole applications
- OSG V-coating
- Increased hardness, lubricity & wear resistance
- DIN Overall Length
- Provides greater reach capability
- Inch & Metric
- Complete Offering
Application: High Nickel AlloysTitanium, Stainless Steel 17-4PH, Hardened Steels up to 45 HrCAerospace, Medical, Oil & Gas
OSG 1708001 3/8-16 Size | UNC | 3 Flute | 2B | Steam Oxide | Spiral Point Tap
