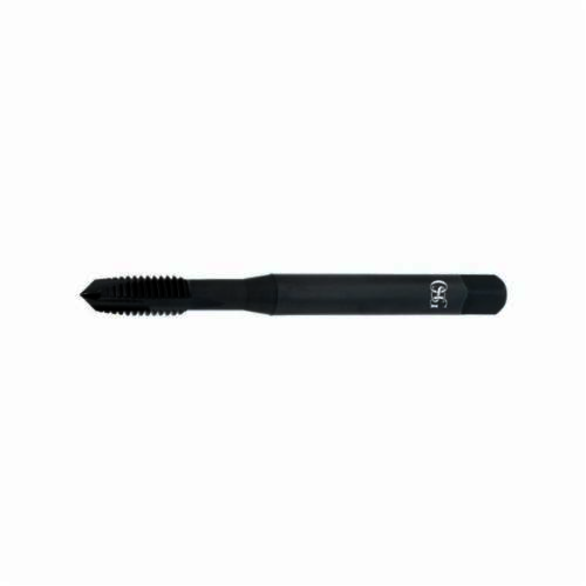

HY-PRO® 2591701 Spiral Point Gun Tap, Right Hand Cutting, M10x1.25 Thread, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
OSG 2591701
$39.38
/ EA
Out of Stock
- Coolant Through: No
- Material Application: Aluminum, Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel and Stainless Steel
- Overall Length: 100 mm
- Shank Diameter - Decimal: 0.381 in
- Thread Standard: UNF
- Number of Flutes: 3
- Material: HSS-E
- Class of Fit: 6H
- Finish/Coating: Steam Oxide
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Measurement System: Metric
- Overall Length - Metric: 100 mm
- Pitch: 1.25 mm
- Point Type: Spiral
- Series: 259
- Shank Length - Metric: 61 mm
Standards/Approvals: DIN Rated
For threading blind holes and through hole applications
HY-PRO Spiral Point Gun Tap | Series: 259 | Measurement System: Metric | UNF | M10x1.25 | Plug Chamfer | 3 Flutes | HSS-E | Steam Oxide | Class of Fit: 6H | Right Hand Cutting | 1-1/4 in Thread Length | 100 mm Overall Length | 0.381 in Shank Dia | Aluminum | Alloy Steel | Carbon Steel | Cast Iron | Die Steel | Hardened Steel and Stainless Steel Material Application
